PLD-15-CW LD Drive Module
Save to Favorites
Specifications
| Parameter | Value |
|---|---|
| Operating voltage | DC5V |
| Output Current | 0~15A |
| Output Voltage | 0~3V Adaptive |
| Current Stability | ＜0.1% |
| Current Mode | Continuous |
| External trigger | TTL5V |
| Bus Communications Interface | RS485 |
| Operating temperature | 10~50℃ |
| Cooling method | Heat sink / Water cooling |
| Mounting dimensions | Customizable |
| Electrical Interface | Standardized Interface |
Applications
Key Features
Datasheet
Please provide your email to download the datasheet.
Invalid email format. Please try again.
Supplier Information
Related Products
-

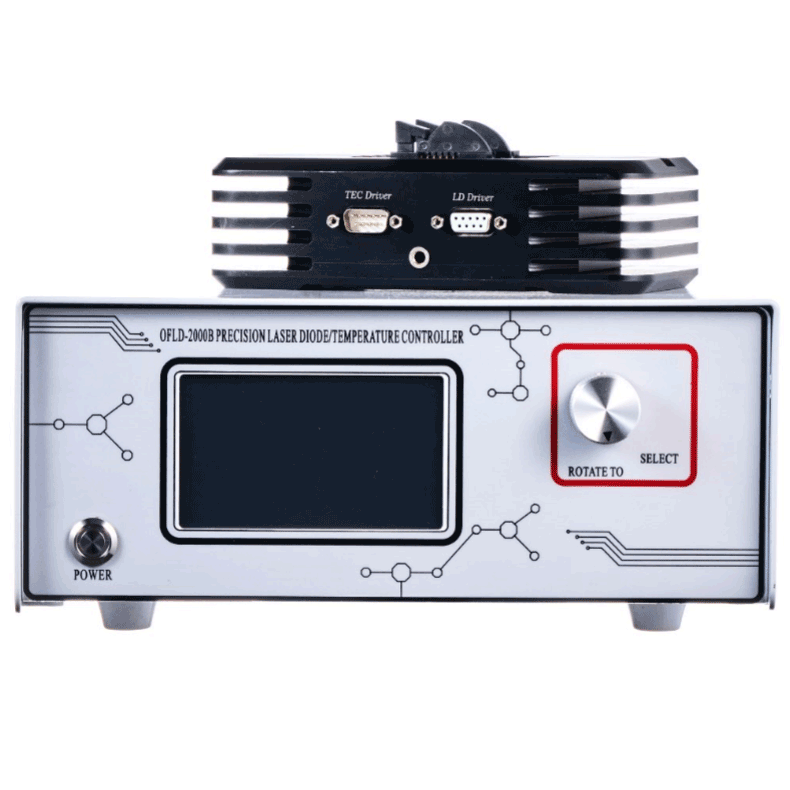

Multifunctional Benchtop Butterfly Laser Driver OFLD-2000B
Laser Diode Drivers
Mchlight
Laser Current Source （ Constant-Current Mode ）- Current Range: 0~2000mA Laser Current Source (Constant-Current Mode)-Servo Voltage: 8V Laser Current Source （ Constant-Current Mode ）- Current Resolution: 0.1mA
Mingchuang Optoelectronics' OFLD series multifunction benchtop butterfly laser driver modules are designed specifically for butterfly semiconductor lasers, including butterfly lasers, SOAs and single-mode pump lasers. Integrated laser-diode drivers and TEC controllers provide constant-current drive and temperature control simultaneously. The modules offer high current accuracy, good constant-current performance, stable temperature and strong interference resistance. Overcurrent, overvoltage and overtemperature protection help ensure stable laser operation and service life. Standard output interfaces, combined with fixtures for different packages, allow lasers in different packages to be driven. They are well suited to laboratories, manufacturer testing and research institutes.
-
Multifunctional Benchtop Butterfly Laser Driver OFLD-2500B
Laser Diode Drivers
Mchlight
Current [Max]: Max Current 2500mA Display screen: With display Dimensions: 317 mm × 280 mm × 130 mm
Mingchuang Optoelectronics' OFLD series multifunction benchtop butterfly laser driver modules are designed specifically for butterfly semiconductor lasers, including butterfly lasers, SOAs and single-mode pump lasers. Integrated laser-diode drivers and TEC controllers provide constant-current drive and temperature control simultaneously. The modules offer high current accuracy, good constant-current performance, stable temperature and strong interference resistance. Overcurrent, overvoltage and overtemperature protection help ensure stable laser operation and service life. Standard output interfaces, combined with fixtures for different packages, allow lasers in different packages to be driven. They are well suited to laboratories, manufacturer testing and research institutes.
-
OHLD Series Disk Laser Driver Module OHLD-1000A
Laser Diode Drivers
Mchlight
Output Current Range [Min ; Max]: min:0 mA；max:1000 mA Output Current Accuracy [Typical]: typical:1 mA Output Current Step [Min ; Typical ; Max]: min:1 mA；typical:10 mA；max:50 mA
Mingchuang Optoelectronics' OHLD simplified butterfly laser driver module is designed for butterfly diode lasers, SOAs and single-mode pump lasers. Integrated diode drive and TEC control provide constant current and temperature control. High current accuracy, good constant-current performance, stable temperature and interference immunity combine with overcurrent, overvoltage and overtemperature protection. Compatible with mainstream 10PIN/14PIN LDs, it suits laboratories, manufacturer testing and research institutions, especially system integrators.
-

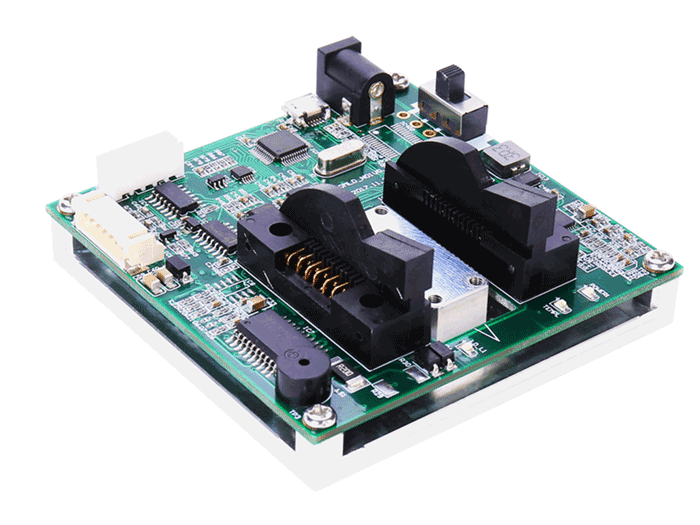

OHLD Series Disk Laser Driver Module OHLD-1000B
