OHLD Series Disk Laser Driver Module OHLD-1000A

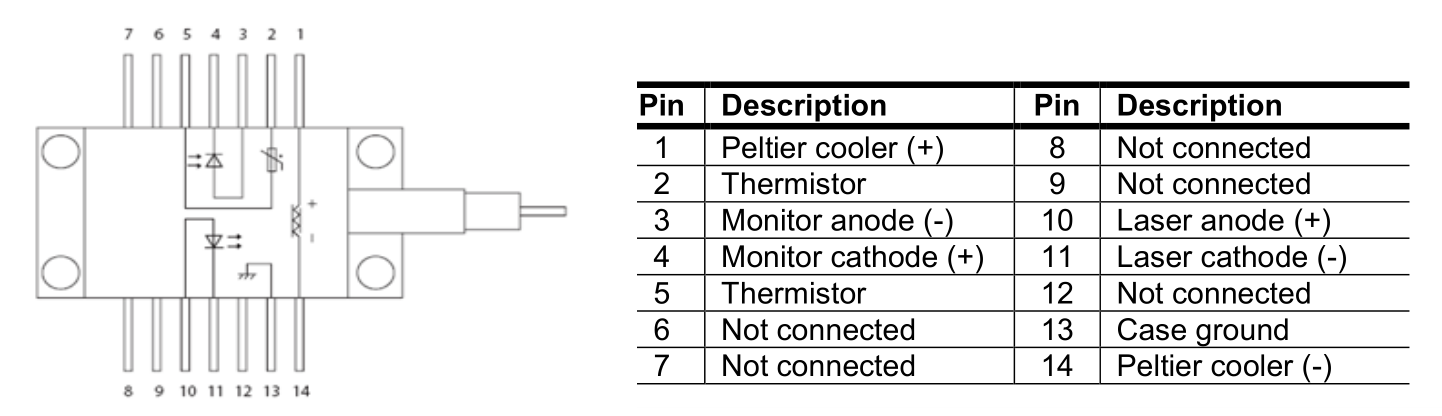

Mingchuang Optoelectronics' OHLD simplified butterfly laser driver module is designed for butterfly diode lasers, SOAs and single-mode pump lasers. Integrated diode drive and TEC control provide constant current and temperature control. High current accuracy, good constant-current performance, stable temperature and interference immunity combine with overcurrent, overvoltage and overtemperature protection. Compatible with mainstream 10PIN/14PIN LDs, it suits laboratories, manufacturer testing and research institutions, especially system integrators.
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|
| Output Current Range [Min ; Max] | min:0 mA；max:1000 mA |
| Output Current Accuracy [Typical] | typical:1 mA |
| Output Current Step [Min ; Typical ; Max] | min:1 mA；typical:10 mA；max:50 mA |
| Output Current Max [Min ; Max] | min:0 mA；max:1000 mA |
| Output Voltage [Typical ; Adaptive] | typical:>3（ Adaptive ） |
| Temperature Control Accuracy [Typical ; Max] | typical:±0.1 ℃；max:±0.2 ℃ |
| Temperature Resolution [Typical] | typical:0.1 ℃ |
| Temperature Control Range [Min ; Typical ; Max] | min:15 ℃；typical:25 ℃；max:35 ℃ |
| Power supply Input Voltage [Typical; Voltage Variation No Greater Than 10% of the Operating Voltage Range] | typical:5 V |
| Power consumption [Max] | max:20 W |
| Operating temperature [Min ; Max] | min:-10 ℃；max:45 ℃ |
| Storage temperature [Min ; Max] | min:-20 ℃；max:70 ℃ |
| Relative Humidity [Typical ; Non-condensing] | typical:5%～90% Non-condensing |
| Product dimensions [Excluding screen] | 80x80x30（ Excluding screen ） |
| Current [Max] | Max Current 1000mA |
| Display screen | without Display |
| Dimensions | 80 mm × 80 mm × 30 mm |
