Narrow Pulse Laser Driver Module
OPLD-0500 is a narrow pulse laser controller with a pulse width that supports 500 ps; it is a combination of two-polar tube pulse constant current circuits and TEC temperature-controlled circuits. Pulse width; frequency; parameters such as working temperature and working current support liquid crystal-touch screen and upper-placer settings; suitable for use in fibre-optic sensing; laser radar and 3D scanning applications. Pulse width 500ps ~800ns Modifiable LD current up to 500mA integrated TEC
Save to Favorites
Overview

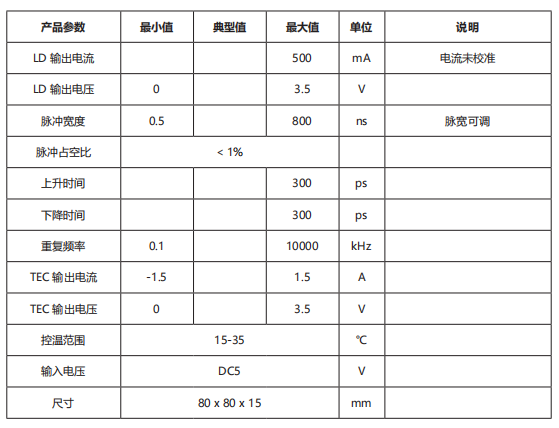

Specifications
| Parameter | Value |
|---|---|
| Product parameters | minimum;typical;maximum; units; description |
| Output current | 500; MA; current not calibrated; -1.5; 1.5; A |
| Pulse ratio | < 1% |
| Rise Time | 300; ps |
| Drop Time | 300; ps |
| Temperature range | 15-35; ℃ |
| Enter voltage | DC5; V |
Datasheet
