Large current pulse laser driver module
OPLD-80P is a large current developed for TOF applications; a nanosecond pulsating light controller for large voltage; a module with a 100V booster; no external lifting pressure; and very suitable for laser ranging, etc. LD max driver current 80A; max voltage 100V trigger nanosecond pulse generator outside the belt; minimum pulse 10ns maximum repeat frequency of 10 MHz support TO; COB, etc
Save to Favorites
Overview

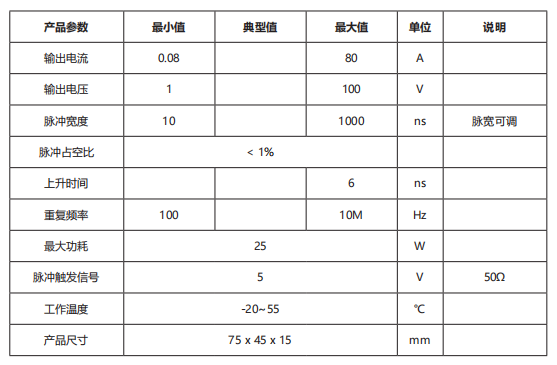

Specifications
| Parameter | Value |
|---|---|
| Product parameters | minimum;typical;maximum; units; description |
| Output current | 0.08; 80; A |
| Pulse ratio | < 1% |
| Rise Time | 6; ns |
| Max | 25; W |
| Pulse trigger signal | 5; V; 50Ω |
| Product size | 75 x 45 x 15; mm |
Datasheet
