Large current temperature control module
OTCM-100 is an input voltage 24V; a large current temperature control module with maximum output currents up to 15A; self-carrying overflow; overpressure protection; hypertemperature; sensor opening protection, etc.; and home-banded fan dispersion. Temperature stability can be achieved at ±0.01°C. It's suitable to drive semiconductor chills, TEC, or electrical resistance heaters. Optimal temperature stability ± 0.01°C Maximum output voltage ± 80% vin Maximum output current 15A
Save to Favorites
Overview

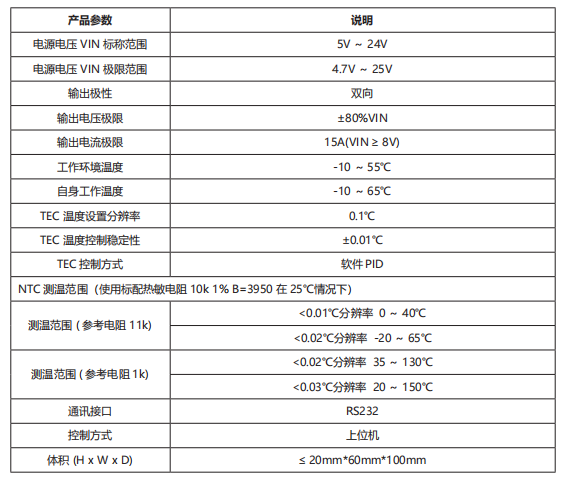

Specifications
| Parameter | Value |
|---|---|
| Product parameters | Annotations |
| Power voltage Mark Range | 5V～24V |
| Power power limit range | 4.7V～25V |
| Output polarity | Double |
| Output voltage limit | ±80%VIN% |
| Output current limit | 15A(VIN≥8V) |
| Working environment temperature | -10～55℃ |
| Self-working temperature | -10～65℃ |
| Temperature Settings Resolution | 0.1℃ |
| Temperature control stability | ±0.01℃ |
| Control Mode | Software PID; Get on board |
| Temperature range | < 0.01°C resolution 0-40°C; < 0.02°C resolution 35~130°C |
| Communications interface | RS232 |
| Volume | ≤20mm60mm100mm |
