Multi-molecular pump drive OSD series
The OSLD series is a modular laser controller designed for multi-modular semiconductor pump lasers; it uses unique current automatic feedback control techniques; it has high output currents; it has constant current characteristics. There was also flow; overpressure; protection measures such as overheating; and effective assurance of the stability and useful life of lasers. Maximum current support 15A output support external simulation; modem frequency up to 100kHz support touchscreen operation a
Save to Favorites
Overview

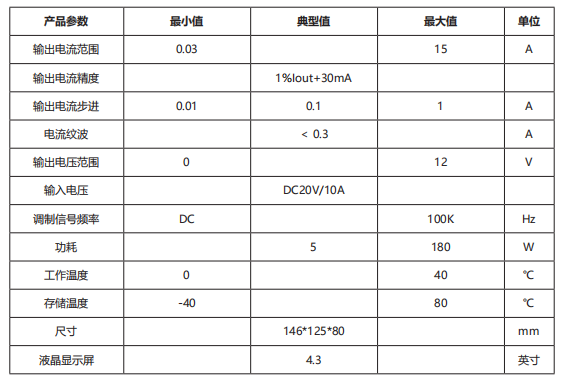

Specifications
| Parameter | Value |
|---|---|
| Product parameters | minimum;typical;maximum; units |
| Output current range | 0.03; 15; A |
| Output current accuracy | 1%Iout+30mA |
| Output current step | 0.01; 0.1; 1; A |
| Fluid Threads | ＜0.3; A |
| Enter voltage | DC20V/10A |
| Modified signal frequency | DC; 100K; Hz |
| Work | 5; 180; W |
| LCD Display | 4.3; inches |
Datasheet
