Combination fibre-optic amplifier
Application profiles; Mixed fibre-optic amplifiers (EDFA) are a product series of photo-power amplifiers dedicated to fibre-optic lasers or fibre-optic communication systems; semiconductor lasers pump plume fibre-optics into signal light. It has the advantage of efficient energy conversion, high gain and low noise. Desktop EDFA allows for experimental operations; users can regulate pump currents through front panels; thus changing amplifiers ' gain and output power. A small-sized modular EDFA is
Save to Favorites
Overview

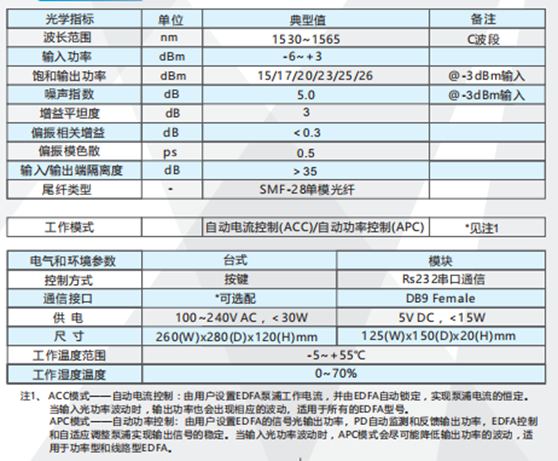

Specifications
| Parameter | Value |
|---|---|
| Optical indicators | units;typical values; comments |
| Enter Power | dBm; -6~+3; 50nm@10; dB |
| Saturation output power | dBm; 15/17/20/23/25/26; @3dBm input |
| Noise Index | dB; 5.0; 5@0n-3md@Bm1 lost 0; enter dB |
| Increase flatness | dB; 3 |
| Distortion-related gains | dB; ＜0.3 |
| The oscillations are scattered | ps; 0.5 |
| Enter output end isolation | dB; ＞35 |
| Electrical and environmental parameters | desktops; modules |
| Control Mode | keys;Rs232 traffic |
| Electricity | 100~240V AC, ＜30W; 5V DC, ＜15W |
| Standard Ruler Version Size | 260(W); x280(D)x120(H)mm; 125(W)x150(D)x20(H)mm |
| Working temperature range | -5~+55℃ |
| Working humidity temperature | 0~70% |
Key Features
