Pluggable Amplifier Series (QSFP EDFA)
Fiber Optic Amplifiers

Pluggable Amplifier Series (QSFP EDFA)

Supplier
Taclink
Part Number
QSFP EDFA
Category
Fiber Optic Amplifiers
Origin
China

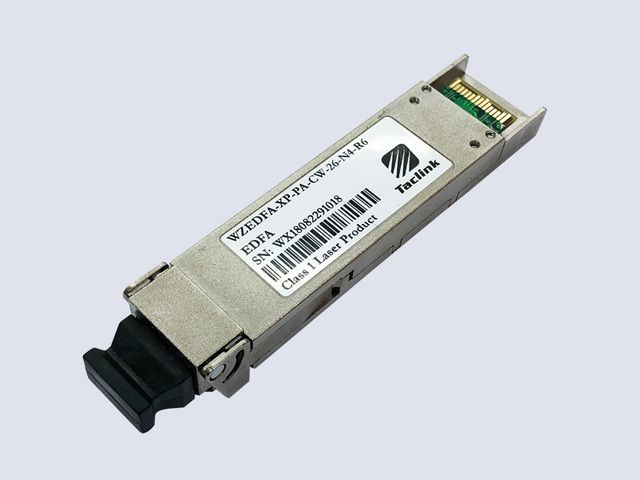

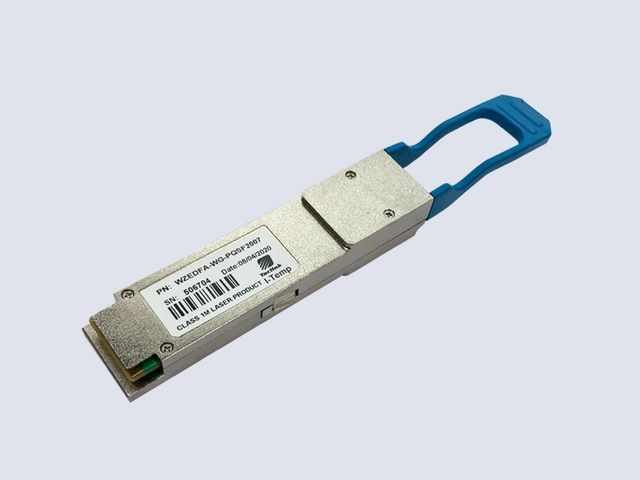

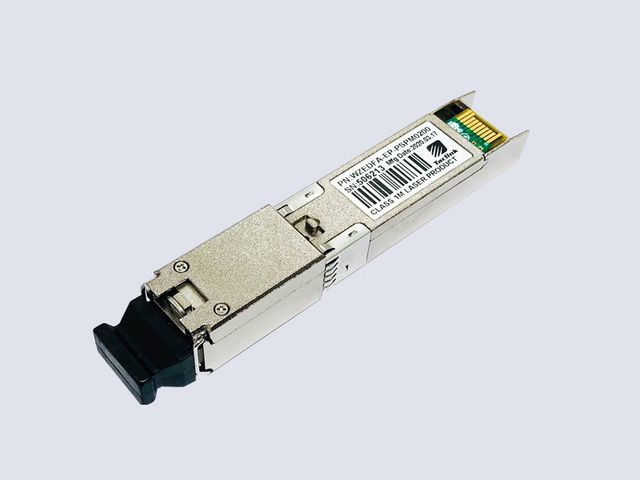

Using package forms such as XFP, QSFP, CFP2, OSFP, it realizes hot-pluggable amplifiers, with a protocol similar to the optical transceiver module protocol.

Request a Quote Download Datasheet
Save to Favorites Save to Favorites

Overview

Using package forms such as XFP, QSFP, CFP2, OSFP, it realizes hot-pluggable amplifiers, with a protocol similar to the optical transceiver module protocol. It can realize single-wavelength, multi-wavelength and even VGA amplifiers. Single-wavelength power is relatively low, generally around 10dBm; multi-wavelength VGA gain is adjustable by 10dB, and power can be above 20dBm. Mainly applied in compact equipment such as OTN and PTN, saving development costs and facilitating maintenance.

Specifications

ParameterValue
Input Power-15~0dBm
Output Power0~10dBm
ModeAGC/APC control
Power Consumption<2w

Applications

Mainly applied in compact equipment such as OTN and PTN

Key Features

◆C band EDFA pluggable QSFP gain module ◆One channel or narrow band ◆Input and output isolation ◆I2C control interface

Datasheet

Please provide your email to download the datasheet.

Your name
Email Address

Invalid email format. Please try again.

Send Request

Supplier Information

Ta
Taclink
View Supplier →
Wuxi Taclink Optoelectronics Technology Co., Ltd. was founded in 2000 with his headquarter in Wuxi, China and locations in Chengdu, Shenzhen and Berlin, Germany. Taclink is a leading designer and manufacturer of optoelectronics products: ● Optical Amplifier Products ● Transceiver ● Optical Components ● Subsystems Supporting and partnering with a global customer base in the communication fields of: ● Datacenter ● Telecom ● Wireless Access ● Fixed Access Taclink’s R&D teams in Wuxi and Chengdu are providing our customer with outstanding technologies and excellent products with highest quality standards. Taclink has created an open working environment for innovation and supporting the development of talented employees. Since the company was established, Taclink has supported successfully many National Innovation Projects like National Optoelectronics Demonstration Project, National 863 Project and National Key Science and Technological Achievement Transformation Project. As a highlight, the "WDM Long-Distance Optical Transmission Project" was awarded the second prize by National Science and Technology. As part of his corporate responsibility,Taclink is helping universities and sponsoring postdoctoral researchers in Jiangsu Integrated Optoelectronics Engineering Technology Center, National Optoelectronics Technology Public Service Platform and other research and technology institutions.
