C++-L++-band-blended fibre-optic amplifier
The C++/L++ waved fibre-optic amplifier EDFA is a product series of photopower amplifiers specially designed for fibre-optic lasers or fibre-optic communication systems; works with wavelength coverage of 1524-1572nm / 1575.16 ~1626.45nm; and has high multiplier and low noise advantages. Override C++/L++ bands High gain factor High output power
Save to Favorites
Overview

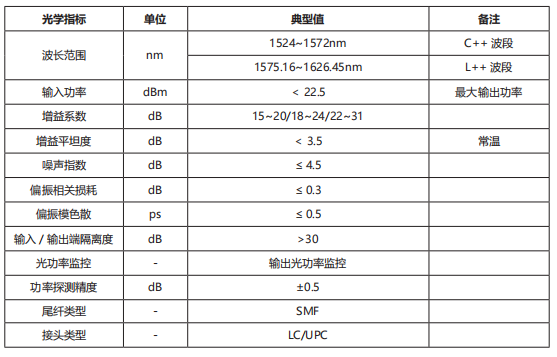

Specifications
| Parameter | Value |
|---|---|
| Optical indicators | units;typical values; comments |
| Enter Power | dBm; < 22.5; maximal output power |
| Gain factor | dB; 15~20/18~24/22~31 |
| Increase flatness | dB; < 3.5; constant temperature |
| Noise Index | dB; ≤4.5 |
| Distortion-related losses | dB; ≤0.3 |
| The oscillations are scattered | ps; ≤0.5 |
| Enter output end isolation | dB; >30 |
| Photopower monitoring | Output light power monitoring |
| Power detection accuracy | dB; ±0.5 |
