MCA series 1.5 ns microlasers 355 nm
The MCA series RealSubns microfilm laser is a semiconductor pump passive Q solid laser developed independently for almonds; single pulse energy stability; beam quality; and stability. Integrated design for semiconductor pump modules and laser crystals; small compact laser heads to facilitate installation and integration; system support internal and external triggers. The products in this series consist of 1064 nm, 532 nm, 355 nm and 266 nm wavelengths; fully sealed modules inside laser heads can
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|
| Average Power | 120; 300; 400; 60; 150; 200; 30; 50; 10; 40mW |
| Output Energy | 120; 60; 40; 20; 30; 15; 10; 5; 3; 8; 2μJ |
| Pulse width | 2000; 1500; 1200ps |
| Power stability@8h | <3% |
| Beam Mode | TEM00 |
| Horizontal Full-Angle Divergence (1/e²) | 8; 6; 5 |
| Vertical Full-Angle Divergence (1/e²) | 8; 6; 5 |
| Distortion | >100:1 |
| Wavelength | 1064; 532; 355; 266nm |
| Repeat frequency | 1; 5; 10; 20kHz |
| System usage | ≤45W |

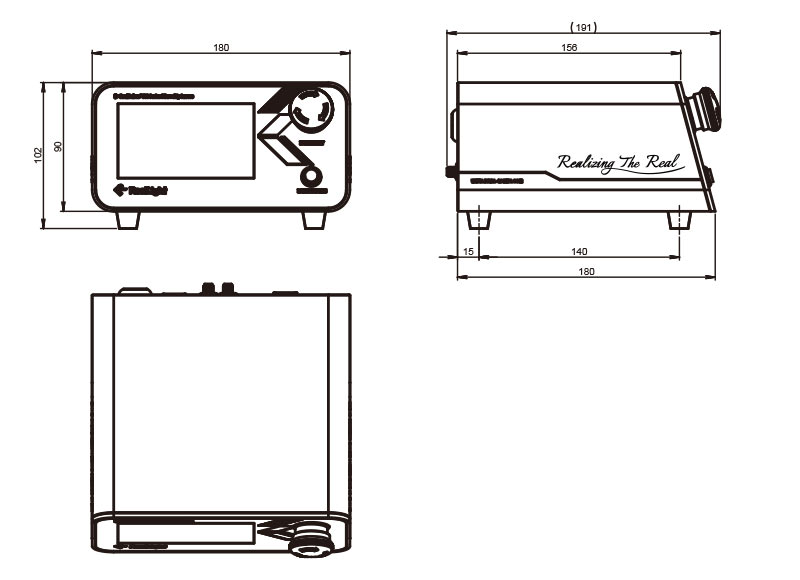

| Power size | 180×102×180 |
| Laser Head Size | 45×33×120 |
