Compact Air-Cooled Nanosecond Laser All-in-One Unit Coral-A Series Coral GR-A
Save to Favorites

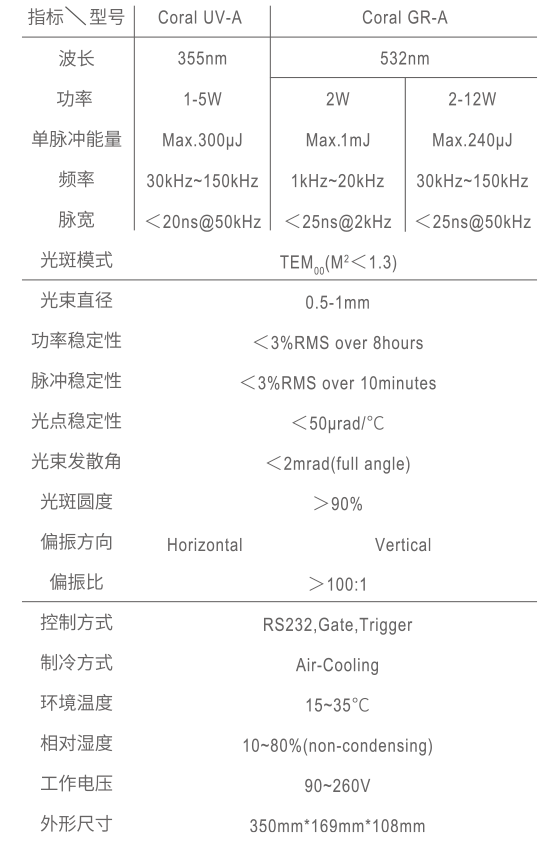

Specifications
| Parameter | Value |
|---|---|
| Spot Mode | TEM₀₀(M²<1.3) |
| Beam diameter | 0.5-1mm |
| Power stability [RMS over 8 hours] | <3% RMS over 8 hours |
| Pulse Stability [RMS over 10minutes] | <3% RMS over 10minutes |
| Spot Stability | <50μrad/°C |
| Beam Divergence Angle [full angle] | <2mrad(full angle) |
| Spot roundness | >90% |
| Polarization direction | Vertical |
| Polarization ratio | >100:1 |
| Control Method | RS232,Gate,Trigger |
| Cooling method | Air-Cooling |
| Ambient Temperature | 15~35°C |
| Relative Humidity [non-condensing] | 10~80%(non-condensing) |
| Operating voltage | 90~260V |
| Overall dimensions | 350mm*169mm*108mm |
| Wavelength | 532nm |
| Power | 2W |
| Single-pulse energy [Power ：2W] | Max.1mJ |
| Frequency [Power ：2W] | 1kHz~20kHz |
| Pulse width [Power ：2W；@2kHz] | <25ns@2kHz |
| Power | 2-12W |
| Single-pulse energy [Power ：2-12W] | Max.240μJ |
| Frequency [Power ：2-12W] | 30kHz~150kHz |
| Pulse width [Power ：2-12W；@50kHz] | <25ns@50kHz |
