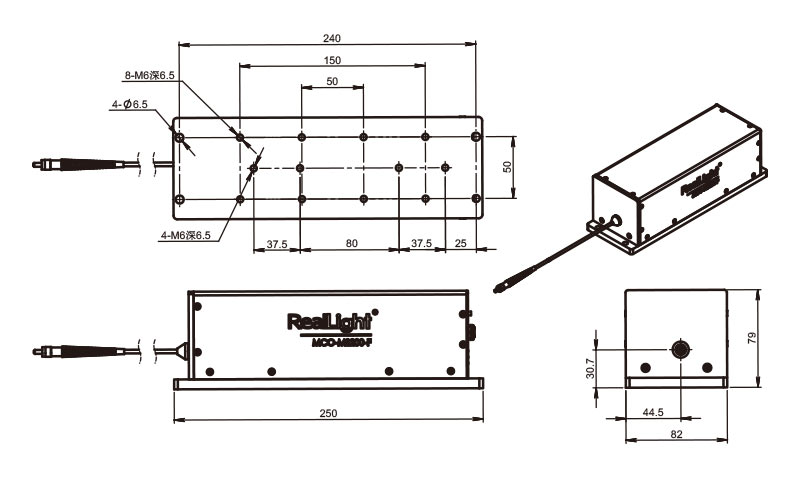

MCO-series fibre-optic output energy adjustable microfibre laser 266 nm

Detector Type: InGaAs Detector Size: Φ2.0mm Wavelength Range: 850~1700 nm

The JW8103A is a high-speed optical power meter specially designed by Shanghai Jiahui for optical communication R&D, production, and scientific research. It can be directly integrated into automated test and production systems, providing high-precision, multi-channel power measurement for the R&D and mass manufacturing of optical components and modules. An internal constant-temperature control circuit ensures the stability and accuracy of measurement data at the hardware level.

Passband wavelength range: Minimum:1260 nm;Maximum:1625 nm Stopband wavelength range: Minimum:1644.5 nm;Maximum:1655.5 nm Insertion Loss (1260nm ~ 1360nm) (IL) [1260nm ~ 1360nm; insertion loss IL (dB) = -10lg(output power/input power)(dB)]: Maximum:1.0 dB

A grating filter is a passive optical device based on fiber Bragg grating (FBG, Fiber Bragg Grating) technology, which forms reflection or transmission characteristics at specific wavelengths in an optical fiber through periodic refractive index modulation. Its core function is to reflect signals at a specific wavelength (e.g., 1644.5nm~1655.5nm) while allowing signals at other wavelengths to pass through. It is widely used in wavelength management, optical path monitoring, and signal filtering scenarios in optical communication systems.

Center Wavelength (λc) [device without connector]: 1310 nm, 1480 nm or 1550 nm Operating Wavelength Range [device without connector]: ± 20 nm Typ. Peak Isolation [device without connector；Single Stage; Grade P]: 42 dB

The Polarization Maintaining Fiber Isolator is a two port micro-optic device built with PM panda fiber. The device guides optical light in one directi

Signal Wavelength Range [device without connector]: 1530~1570 nm Max. Signal Insertion Loss [device without connector；for 1%；For devices with connectors, IL will be 0.3dB higher, RL will be 5dB lower, ER will be 2dB lower.；Single Stage]: 0.8 dB(for 1 %), Max. Signal Insertion Loss [device without connector；for 1%；For devices with connectors, IL will be 0.3dB higher, RL will be 5dB lower, ER will be 2dB lower.；Dual Stage]: 1.0 dB(for 1 %)

The polarization maintaining (PM) fiber-optic tap/isolator combines the functionality of a PM isolator with a PM tap Coupler in one compact inline pac

Port Configuration: Fiber In,Free-space out Signal light wavelength: 800~2000 nm Input Fiber/Cladding Diameter: X/125 μm

Lightel high-performance Fiber End Cap is used in highly specialized devices and equipment, including: high power fiber lasers, collimators and sealed PCF. The fiber end cap is made by splicing or laser fusing a short length of material to the fiber end face. In application scenarios, the fiber end cap allows the expansion of high power fiber laser beams to reduce the power density at the air/silica interface and protect the structural fiber from environmental influence.
