PMTap Isolator
The polarization maintaining (PM) fiber-optic tap/isolator combines the functionality of a PM isolator with a PM tap Coupler in one compact inline pac
Save to Favorites
Overview

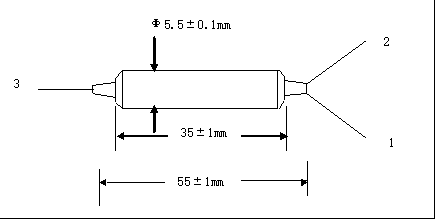

Specifications
| Parameter | Value |
|---|---|
| Signal Wavelength Range [device without connector] | 1530~1570 nm |
| Max. Signal Insertion Loss [device without connector；for 1%；For devices with connectors, IL will be 0.3dB higher, RL will be 5dB lower, ER will be 2dB lower.；Single Stage] | 0.8(for 1%), |
| Max. Signal Insertion Loss [device without connector；for 1%；For devices with connectors, IL will be 0.3dB higher, RL will be 5dB lower, ER will be 2dB lower.；Dual Stage] | 1.0( for 1%) |
| Max. Signal Insertion Loss [device without connector；for 5%；For devices with connectors, IL will be 0.3dB higher, RL will be 5dB lower, ER will be 2dB lower.；Single Stage] | 1.0(for 5%) |
| Max. Signal Insertion Loss [device without connector；for 5%；For devices with connectors, IL will be 0.3dB higher, RL will be 5dB lower, ER will be 2dB lower.；Dual Stage] | 1.2( for 5%) |
| Signal Tap Ratio (Input to Tap) [device without connector；Input to Tap；Single Stage] | 1+/-0.2, 5+/-1 |
| Signal Tap Ratio (Input to Tap) [device without connector；Input to Tap；Dual Stage] | 1+/-0.2, 5+/1 |
| Typ. Signal Peak Isolation [device without connector；Single Stage] | 40 dB |
| Typ. Signal Peak Isolation [device without connector；Dual Stage] | 58 dB |
| Min. Signal Isolation at 23 ℃ [device without connector；23 ℃；Single Stage] | 28 dB |
| Min. Signal Isolation at 23 ℃ [device without connector；23 ℃；Dual Stage] | 48 dB |
| Min. Extinction Ratio (only for B Type) | 20 dB |
| Min. Extinction Ratio (only for F Type) | 23 dB |
| Min. Return Loss (for all ports) [device without connector；for all ports；For devices with connectors, IL will be 0.3dB higher, RL will be 5dB lower, ER will be 2dB lower.；Single Stage / Dual Stage] | 50 dB |
| Max. Optical Power (CW) [device without connector；CW] | 500 mW |
| Max. Tensile Load [device without connector] | 5 N |
| Fiber Type [device without connector] | PM 1550 Panda Fiber for Input and Output Ports, SMF-28e Fiber or Panda Fiber for Tap Port |
| Operating Temperature [device without connector] | 0 to +70 ℃ |
| Storage Temperature [device without connector] | -40 to +85 ℃ |
Applications
Key Features
Datasheet
Please provide your email to download the datasheet.
Invalid email format. Please try again.
