Fiber End Cap FEC (PM or non-PM)

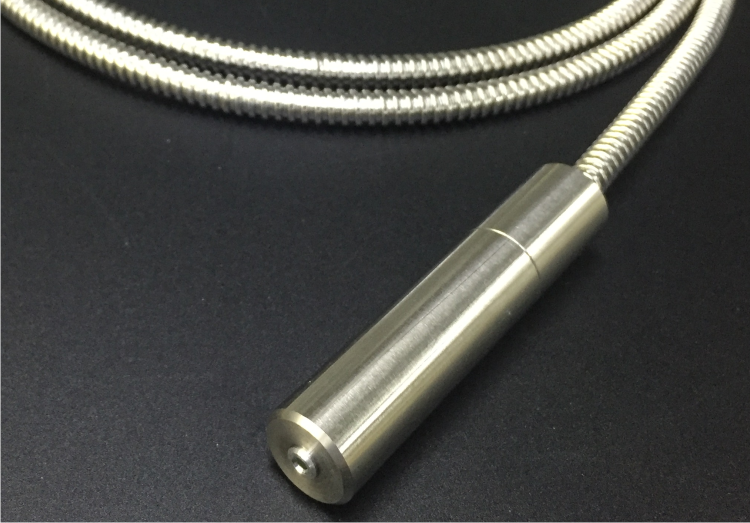

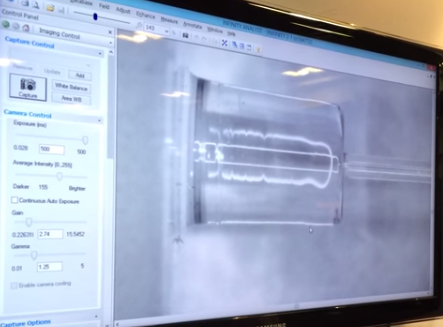

Lightel high-performance Fiber End Cap is used in highly specialized devices and equipment, including: high power fiber lasers, collimators and sealed PCF. The fiber end cap is made by splicing or laser fusing a short length of material to the fiber end face. In application scenarios, the fiber end cap allows the expansion of high power fiber laser beams to reduce the power density at the air/silica interface and protect the structural fiber from environmental influence.
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|
| Port Configuration | Fiber In，Free-space out |
| Signal light wavelength | 800~2000nm |
| Input Fiber/Cladding Diameter | X/125μm |
| Input Fiber/Cladding Diameter | X/250μm |
| Input Fiber/Cladding Diameter | X/400μm |
| Input Fiber/Cladding Diameter | 200/220μm |
| Input Fiber/Cladding Diameter | 400/440μm |
| Signal Insertion Loss | <0.1dB |
| Output Beam Ellipticity [Single-mode input.；Input Fiber/Cladding Diameter: X/125μm / X/250μm / X/400μm] | >95% (Single-mode input.) |
| Polarization Extinction Ratio [Input PER>23dB, For PM type.；Input Fiber/Cladding Diameter: X/125μm / X/250μm / X/400μm] | >20dB (Input PER>23dB, For PM type.) |
| Optical Power Handling Capacity | 200W 500W |
| Return Loss | >45dB |
| Package Dimensions [Customized.] | Φ17×80mm (Customized.) |
| Pigtail [Customizable.] | 2m armored cable, 2.5m PVC polyvinyl chloride cable, 3m Fiber (Customizable.) |
| Operating Temperature | 0~75℃ |
| Storage temperature | -40~85℃ |
