SWI225SL/SLE
The SWI225SL/SLE sub-micron linear positioning stage is a precision linear positioning stage with high rigidity, high accuracy and sub-micron repeatability, with travels from 50 mm to 200 mm. The entire body is made of 7075-T6 aviation-grade aluminum alloy, optimized through finite element analysis and machined in one piece, effectively avoiding the bending effect caused by the different thermal expansion coefficients of the aluminum base and guideways. The 4th-generation optimized side-sealing structure effectively prevents particles, dust and process debris from entering; an optional positive-pressure air purge system further enhances protection capability and long-term reliability. It provides fast, smooth motion with fast response, short settling time and accurate positioning; the non-preloaded assembly process ensures long-term screw reliability, with low center of gravity, high rigidity, precise guidance, smooth motion and low low-speed climb. It provides a complete single-axis/multi-axis management solution with good compatibility with other CNBHC product series. It comes standard with Servotronix servo motors or Oriental Motor 5-phase stepper motors; 5-phase stepper motors are recommended for high-accuracy applications.
Save to Favorites
Overview
Specifications

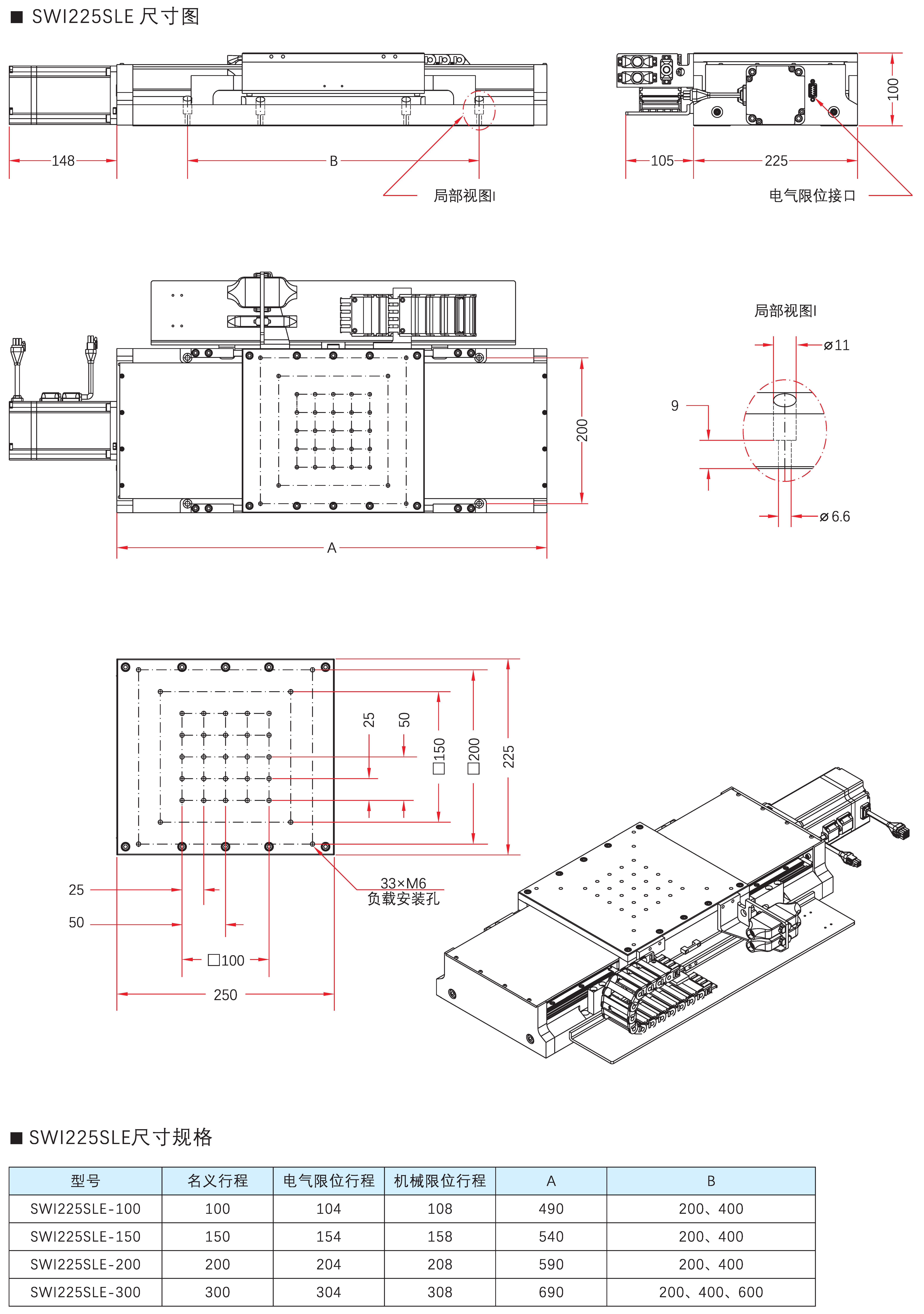

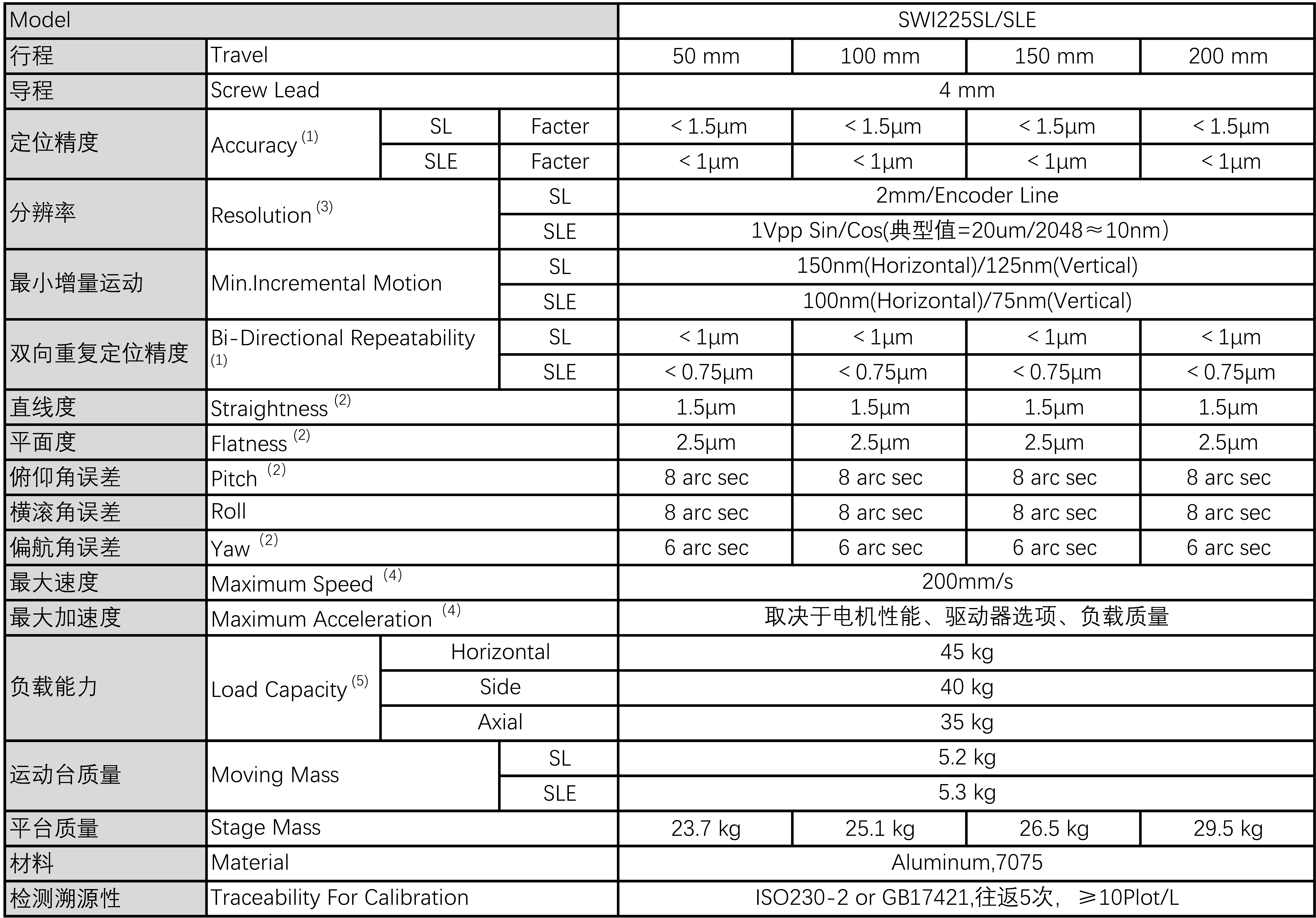

| Parameter | Value |
|---|---|
| Travel | 50~200mm |
| Screw Lead | 4mm |
| Accuracy | <1.5μm (SL) |
| Accuracy | <1μm (SLE) |
| Bi-Directional Repeatability | <1μm (SL) |
| Bi-Directional Repeatability | <0.75μm (SLE) |
| Straightness | 1.5μm |
| Flatness | 2.5μm |
| Roll | 8arc sec |
| Yaw | 6arc sec |
| Maximum Speed | 200mm/s |
| Load Capacity | 45 (Horizontal)kg |
| Load Capacity | 40 (Side)kg |
| Load Capacity | 35 (Axial)kg |
| Moving Mass | 5.2 (SL)kg |
| Moving Mass | 5.3 (SLE)kg |
| Stage Mass | 23.7kg (50mm); 25.1kg (100mm); 26.5kg (150mm); 29.5kg (200mm) |
Key Features
Datasheet
Supplier Information
Related Products
-
Z-Axis Vertical Lift Stage
Motorized Platform
Cnbhc
Travel: 5mm Accuracy (EC): <350nm Accuracy (Base): <250nm
The REI_V series nano vertical lift stage is a standardized, modular, wedge-type high-precision vertical lift platform. Driven by coreless linear motors with precision crossed-roller guidance, it combines speed, accuracy, system resolution, bi-directional repeatability, reliability and compact size. As a derivative of the REI series, it delivers the same motion performance as the REI_LM series and is the ideal Z-axis choice for space-constrained applications. The non-contact direct drive offers high dynamic performance, zero cogging, sub-nanometer resolution, extremely low velocity ripple, high speed and high accuracy; the stage features zero backlash and near-zero system hysteresis, enabling precise, highly repeatable nanometer-level motion as well as extremely low-speed smooth motion.
-
