Linear Positioning Stage - Linear Positioning Stage

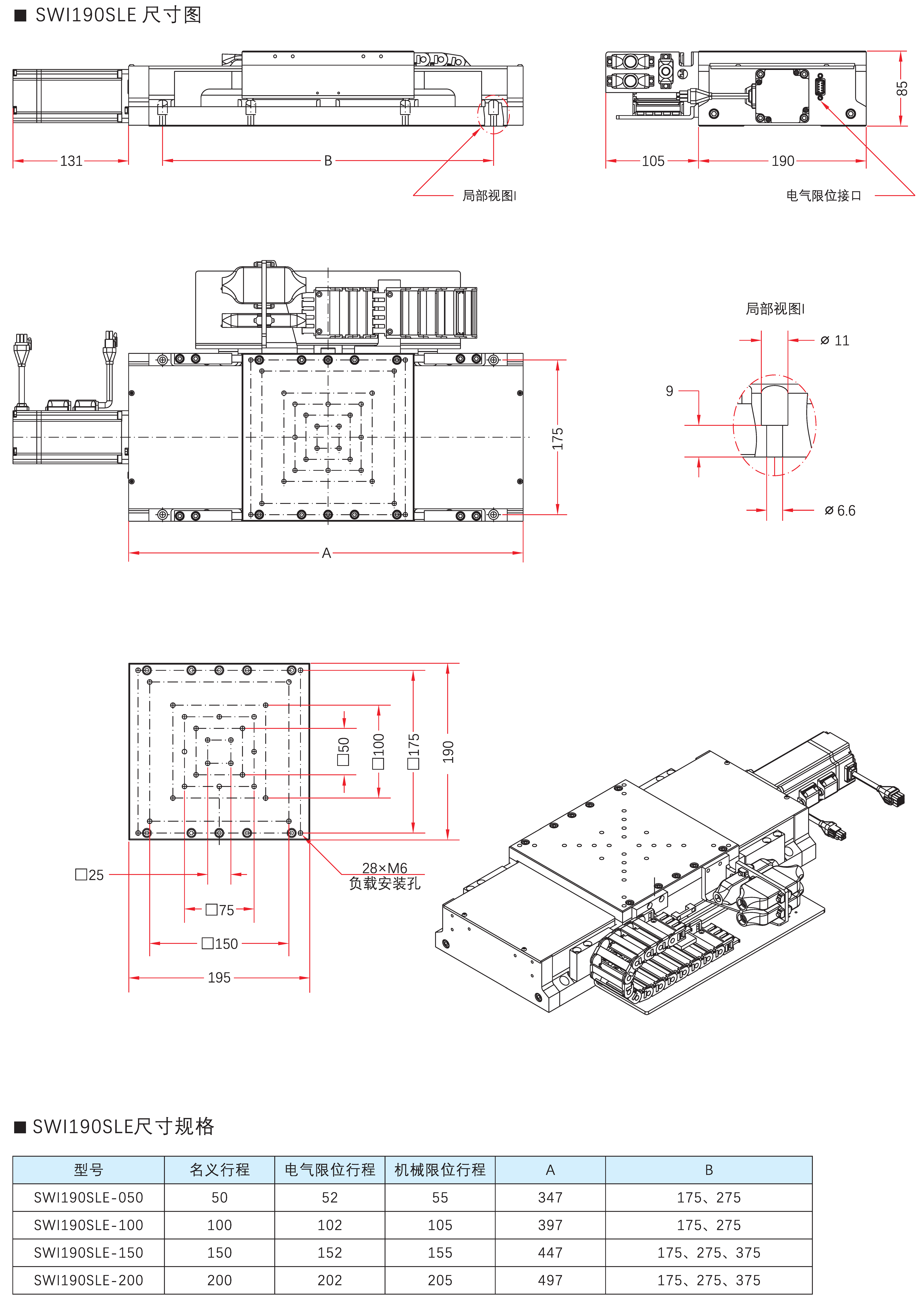

The SWI190SL/SLE sub-micron linear positioning stage is a precision linear positioning stage with high rigidity, high accuracy and sub-micron repeatability, with travels from 50 mm to 200 mm. The entire body is made of 7075-T6 aviation-grade aluminum alloy, optimized through finite element analysis and machined in one piece; the 4th-generation optimized side-sealing structure effectively prevents particles, dust and process debris from entering, with an optional positive-pressure air purge system. It features fast response, short settling time, accurate positioning, low center of gravity, high rigidity, precise guidance, smooth motion, low low-speed climb, good load capacity and low noise; it provides a complete single-axis/multi-axis management solution and is compatible with other CNBHC product series; it comes standard with Servotronix servo motors or Oriental Motor 5-phase stepper motors.
Save to Favorites
Overview
Key Features

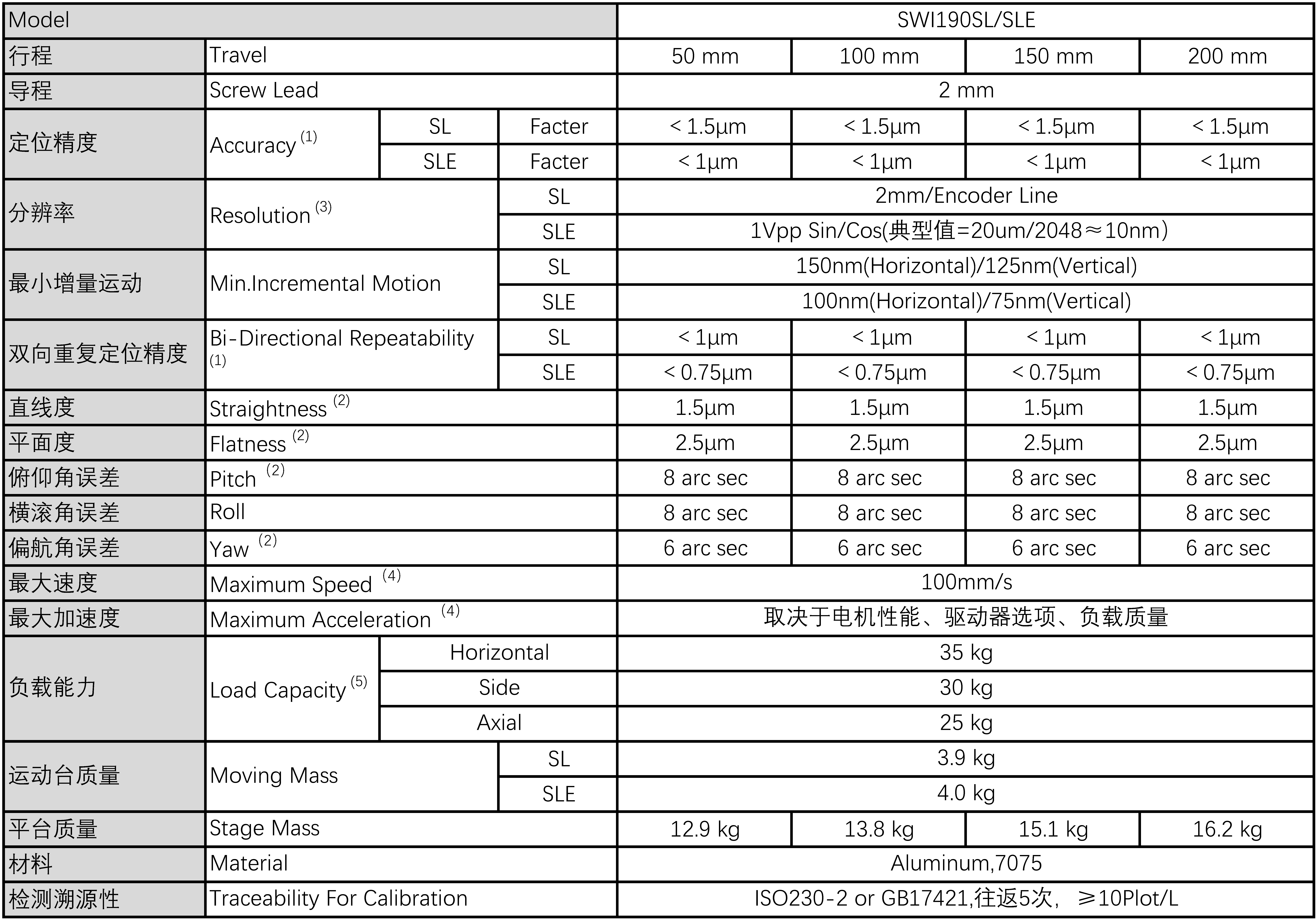

Datasheet
