Linear Positioning Stage
The SWI115SL/SLE is a precision linear positioning stage with high rigidity, high accuracy and sub-micron repeatability, with travels from 50 mm to 200 mm. The entire body is made of 7075-T6 aviation-grade aluminum alloy and comes standard with Servotronix servo motors or Oriental Motor 5-phase stepper motors.
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|
| 导程 | 2mm |
| 直线度 | 1.5μm |
| 平面度 | 2.5μm |
| 横滚角误差 | 8arc sec |
| 偏航角误差 | 6arc sec |
| 最大速度 | 100mm/s |
| 负载能力(水平) | 15kg |
| 负载能力(侧向) | 12kg |
| 负载能力(轴向) | 8kg |
| 检测溯源性 | ISO230-2 or GB17421,往返5次,≥10Plot/L |
Key Features

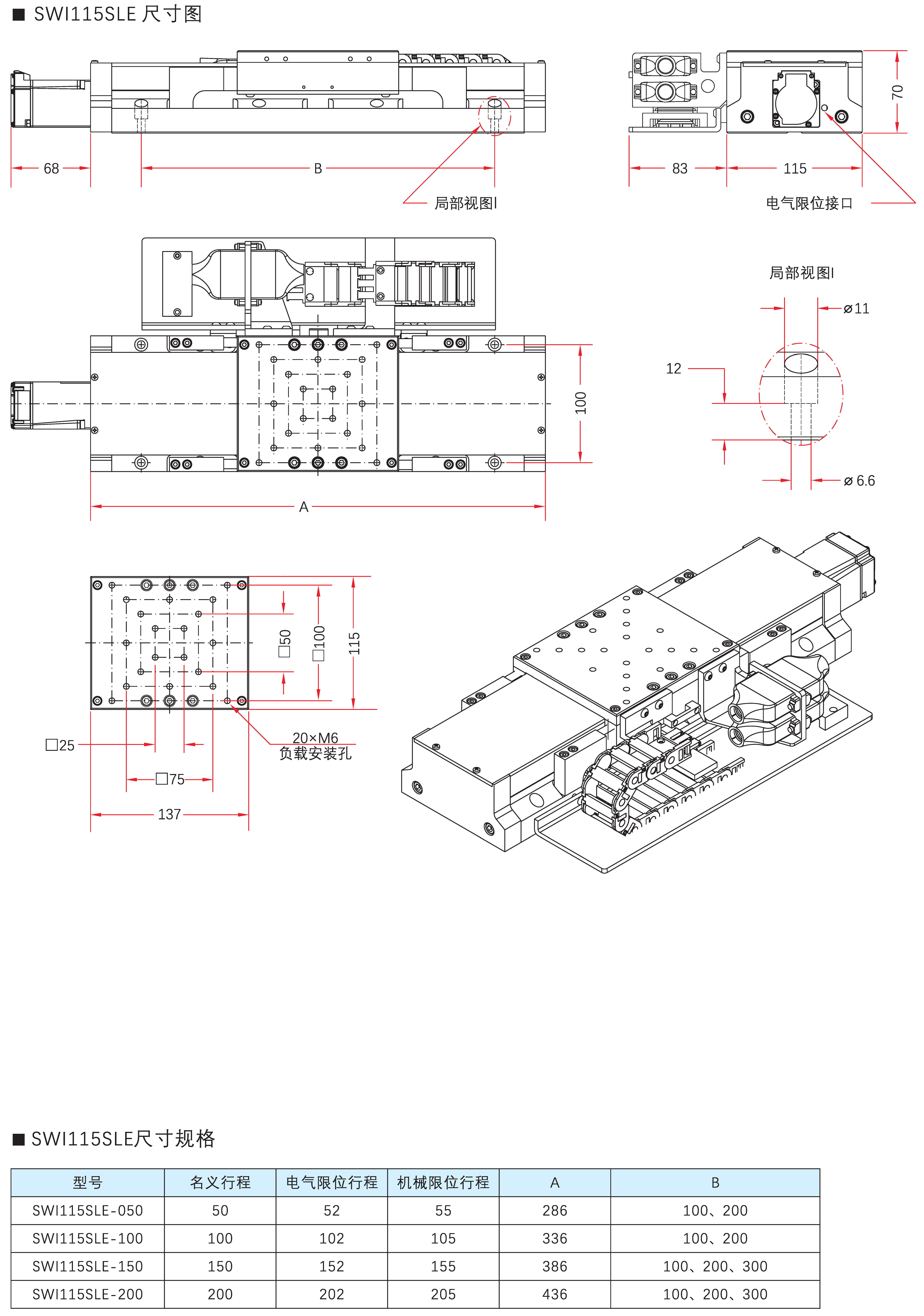

Datasheet
