Linear Positioning Stage
The ECO_SL/SLE series economy linear translation stages feature a 225 mm load carriage with travels covering 100-400 mm. The feedback system can be directly coupled to the moving carriage as required; combined with precision ground ball screws and high-precision rolling-friction guideways, the products deliver excellent positioning accuracy, repeatability and mechanical resolution better than 50 nm. Featuring a standardized universal mounting pattern for easy system integration, they can be easily combined into two, three or more axes for flexible system design and multi-axis configurations, and can also be used for Z-axis drive; a brake can be added as required for power-off self-locking protection. Compared with other high-performance CNBHC products, the ECO_SL/SLE series maintains the performance of its core components and high repeatability while also offering high dynamic response.
Save to Favorites
Overview

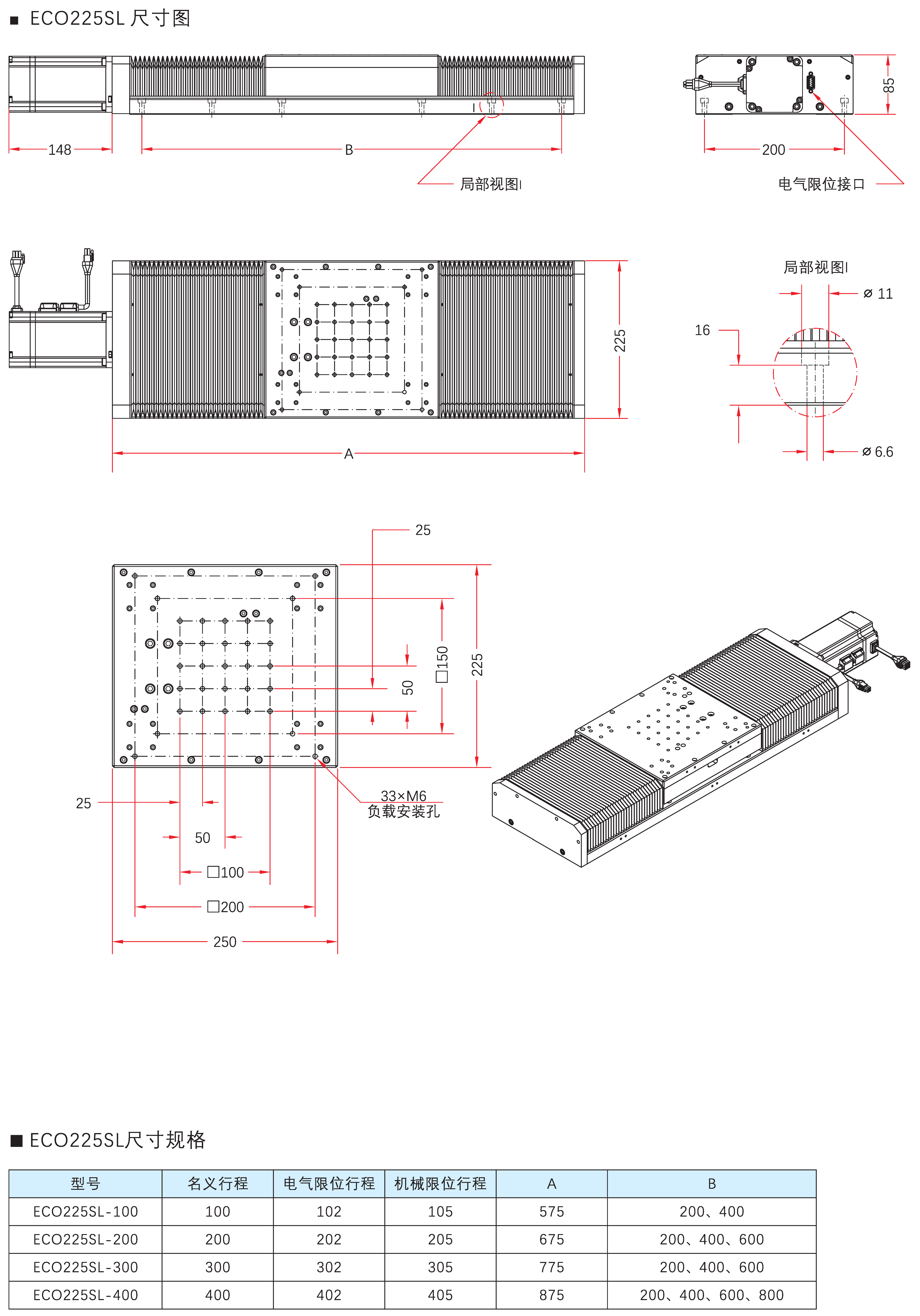

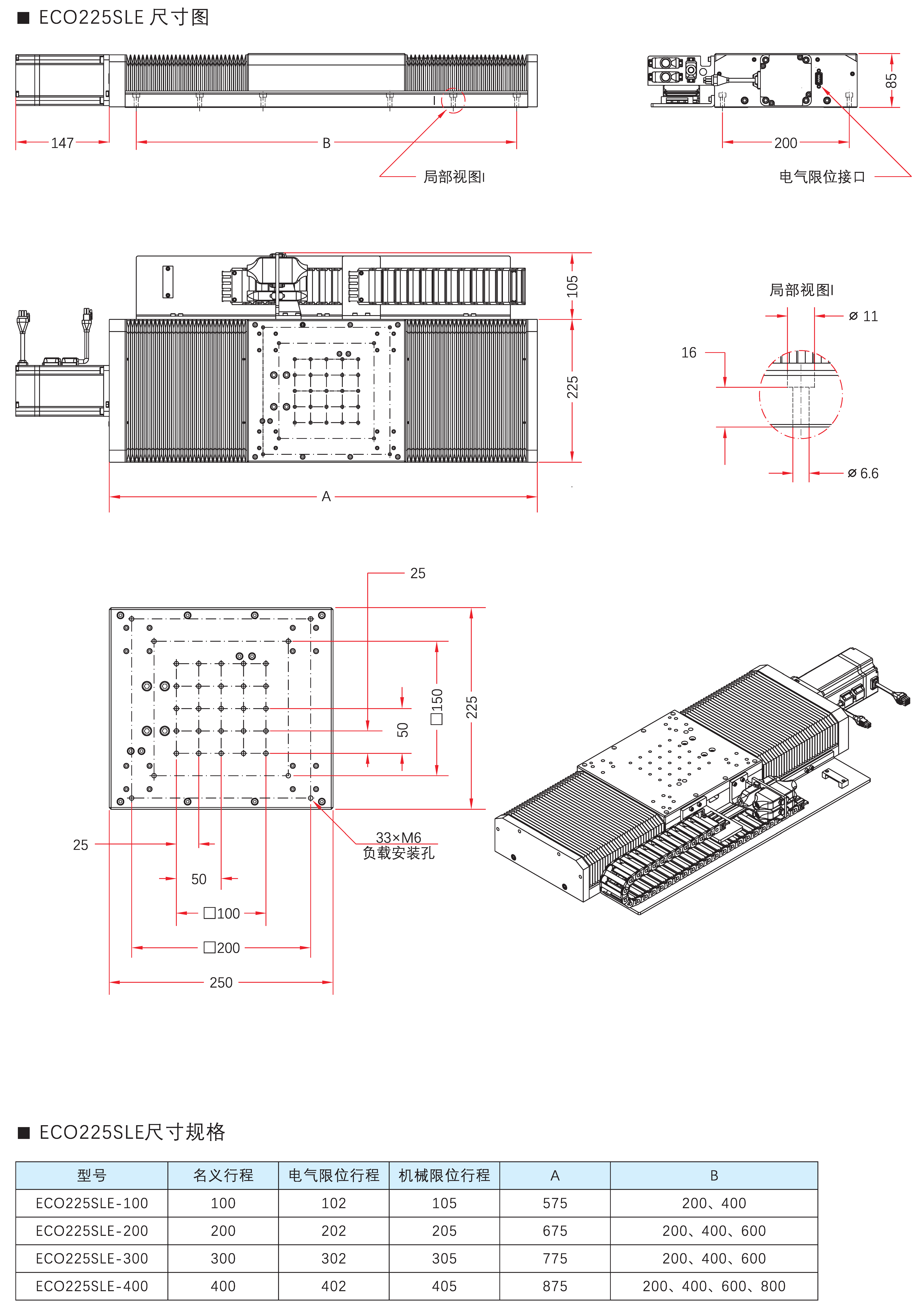

Specifications
| Parameter | Value |
|---|---|
| Travel | 100mm / 200mm / 300mm / 400mm |
| Screw Lead | 4 mm |
| Straightness | 2 μm (100/200/300/400mm) |
| Roll | 12 arc sec (100/200/300/400mm) |
| Yaw | 10 arc sec (100/200/300/400mm) |
| Maximum Speed | 200 mm/s |
| Traceability For Calibration | ISO230-2 or GB17421, 5 passes bi-directional, ≥10Plot/L |
