Linear Positioning Stage

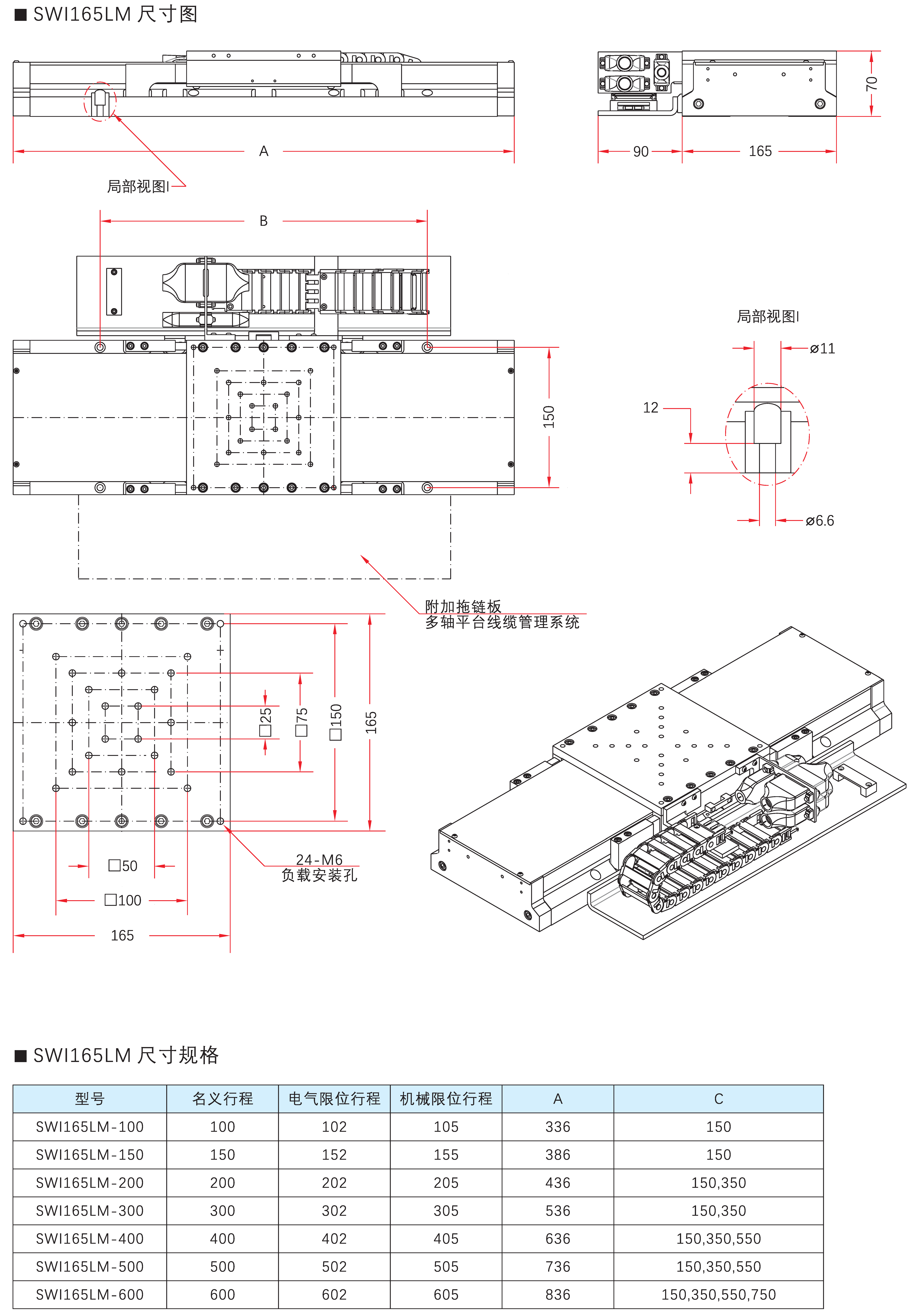

The SWI165LM Ite IV series sub-micron precision direct drive stage is the latest generation of sub-micron direct drive stages refined through continuous optimization. It delivers high accuracy and high dynamic performance, achieving nanometer-level minimum incremental motion and sub-micron bi-directional repeatability. Driven by a high-efficiency coreless linear motor, the stage features zero-clearance transmission, zero cogging, smooth motion and outstanding dynamic response. The stage uses a long-life precision linear guideway bearing system combined with a specially designed low-friction side-sealing structure, with an optional positive-pressure air purge system. Design travels range from 50 mm to 600 mm, with speeds up to 2000 mm/s, and a complete single-axis/multi-axis cable management solution is available. Cleanroom, vacuum and low-temperature versions can be provided through special treatment.
Save to Favorites
Overview
Applications
Key Features
Datasheet
Supplier Information
Related Products
-
Z-Axis Vertical Lift Stage
Motorized Platform
Cnbhc
Travel: 5mm Accuracy (EC): <350nm Accuracy (Base): <250nm
The REI_V series nano vertical lift stage is a standardized, modular, wedge-type high-precision vertical lift platform. Driven by coreless linear motors with precision crossed-roller guidance, it combines speed, accuracy, system resolution, bi-directional repeatability, reliability and compact size. As a derivative of the REI series, it delivers the same motion performance as the REI_LM series and is the ideal Z-axis choice for space-constrained applications. The non-contact direct drive offers high dynamic performance, zero cogging, sub-nanometer resolution, extremely low velocity ripple, high speed and high accuracy; the stage features zero backlash and near-zero system hysteresis, enabling precise, highly repeatable nanometer-level motion as well as extremely low-speed smooth motion.
-
