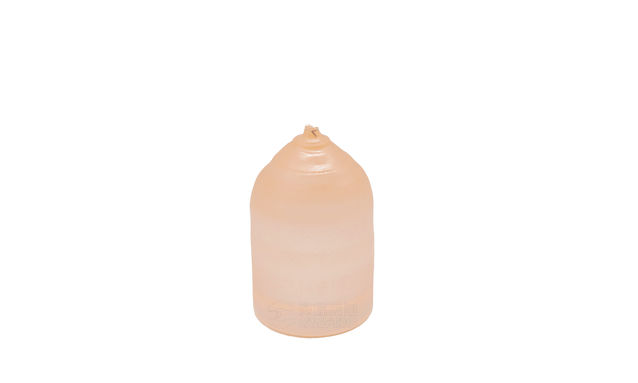

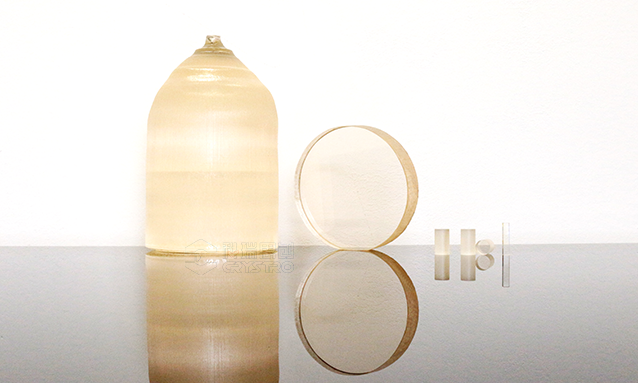

TGG Terbium Gallium Garnet
TGG Terbium Gallium Garnet TGG Magneto-Optic Crystal Material. 400nm-1100nm 475-500nm. Provide 4
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|
| Lattice Parameter | a=12.355Å |
| Growth Method | Czochralski |
| Transmittance Range | 400nm~1100nm |
| Verdet Constant | 40 @ 1064nm |
| Orientation Accuracy | [111] ±15' |
| Wavefront Distortion | <λ/8@633nm |
| Length Tolerance | ±0.1mm |
| Flatness | <λ/10 @ 633nm |
| Surface Quality | 10-5 |
| Coating | AR, R<0.2%@1064nm |
| Damage Threshold | >10J/cm²@1064nm 10ns 10KHZ |
| Maximum Size | Φ100 mm |
