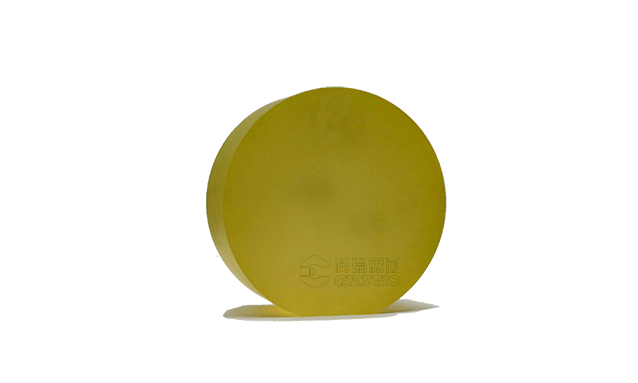

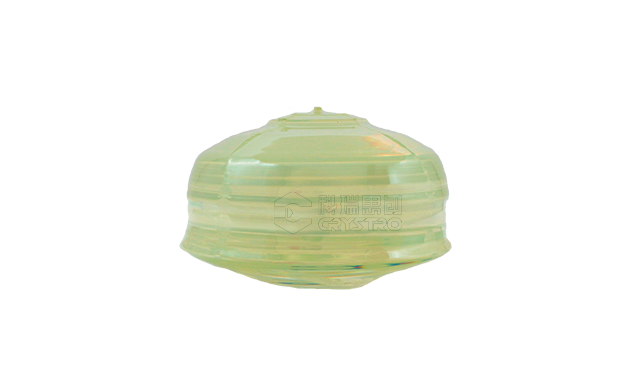

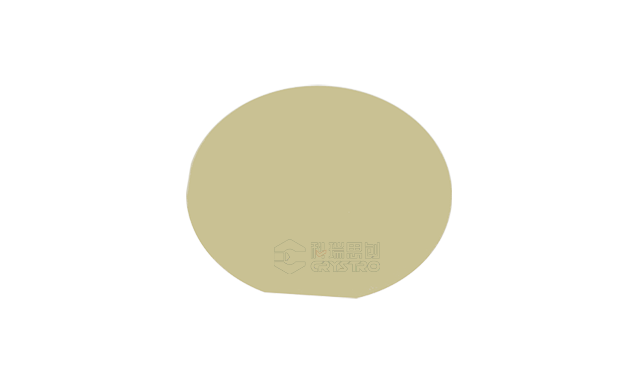

Li NbO3
Li NbO3 Material. Material. Material Optical Communication. Material.
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|
| Lattice Parameter | a=0.515Å, c=13.863Å, Z=6Å |
| Relative Dielectric Constant | ε₁₁=85.2 |
| Thermal Expansion Coefficient | α₁₁=15.4×10⁻⁶/K |
| Refractive Index | nₒ=2.2827 nₑ=2.1928 @633nm |
| Pyroelectric Coefficient | 4×10⁻⁵C/cm² /K |
| Piezoelectric Constant | d₂₂=2.04×10⁻¹¹C/N,d₃₃=0.6×10⁻¹¹C/N |
| Electro-Optic Coefficient | gT33=32pm/V, gS33=31pm/V gT31=10pm/V, gS31=8.6pm/V gT22=6.8pm/V, gS22=3.4pm/V |
| Dielectric Constant | ε₁₁/ε ₀=85. ε₃₃/ε₀=29.5 |
| Transmission Range | 370~5000nm |
Applications
Key Features
Datasheet
Please provide your email to download the datasheet.
