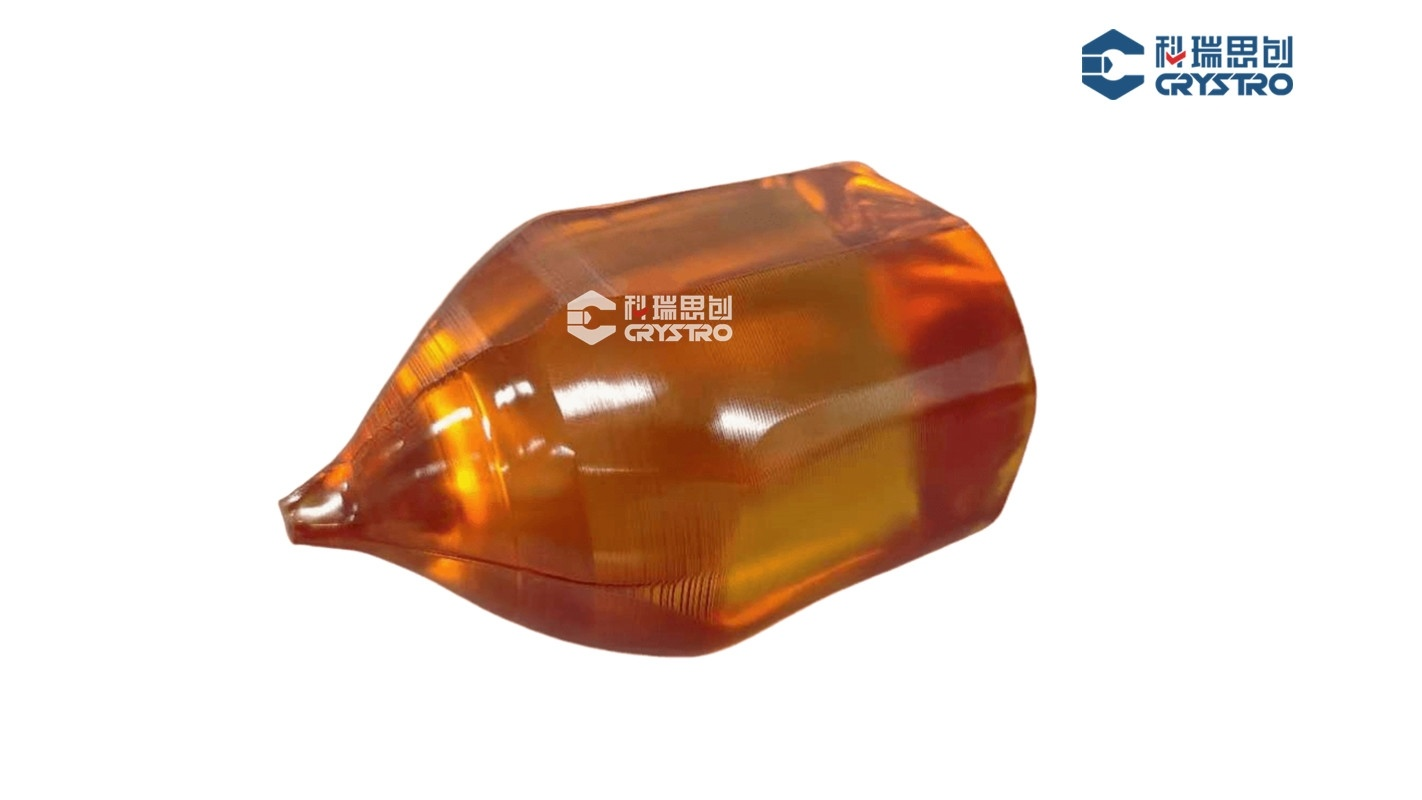

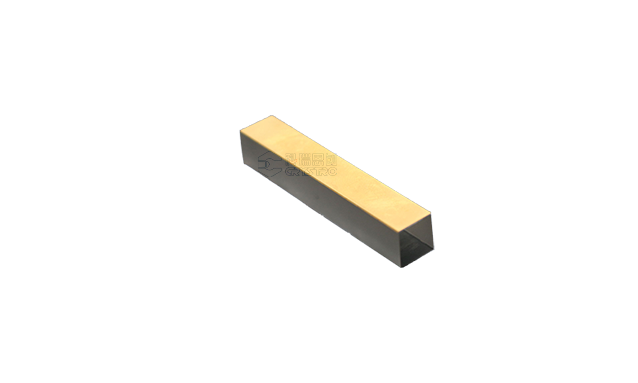

LGS
LGS Silicon LGS SAW BAW Material. LGS Can Electro-Optic Q-Switch. LGS Material.
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|
| Relative Dielectric Constant | ε₁₁/ε₀=19.2. ε₃₃/ε₀=50.7 |
| Thermal Expansion Coefficient | α₁₁=5.07×10⁻⁶/K. α₃₃=3.60×10⁻⁶/K |
| Piezoelectric Constant | e₁₁=0.43. e₂₂=0.1039 |
| Dimension Specification | Φ2, Φ3, 10mm×10mm×0.5mm, 20mm×20mm×0.5mm |
| Thickness Tolerance | ±0.02mm |
| Flatness | ＜λ/10@633nm |
| Surface Quality | 10/5 |
Applications
Key Features
Datasheet
