optical power meter

Detector Type: InGaAs Detector Size: Φ2.0mm Wavelength Range: 850~1700 nm

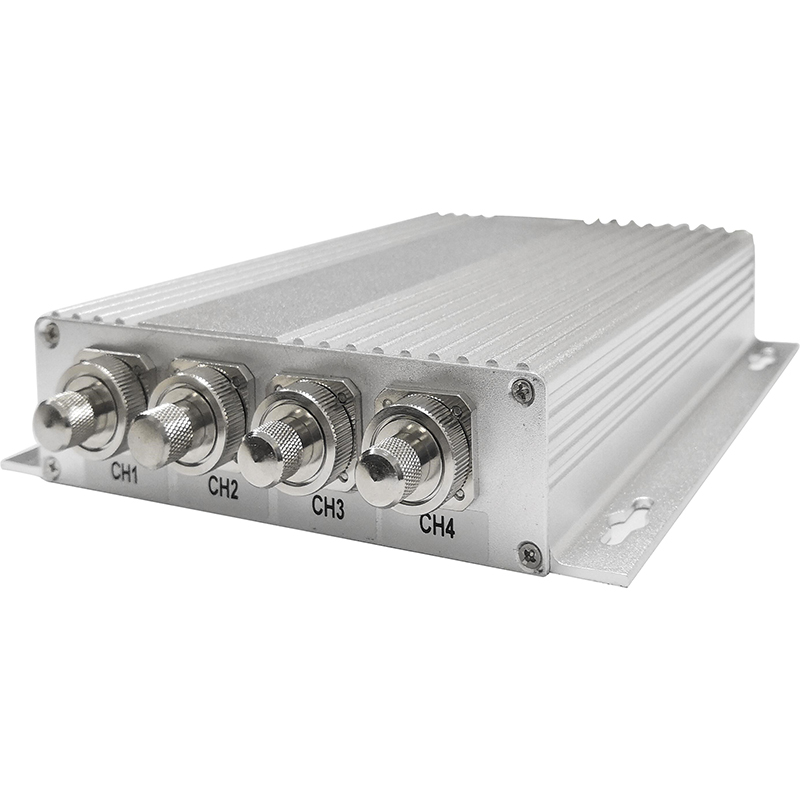

JW1609C is a high-speed optical power meter module designed by Shanghai Jiahui specifically for automated equipment integration. Through high-speed sampling of optical power (10Ksps) and real-time high-speed processing, it meets the needs of precise measurement and monitoring of dynamic optical power, and can be flexibly integrated into optical device R&D testing and manufacturing processes, providing an efficient and reliable power measurement unit for automated testing and production systems.

Detector Type: InGaAs Detector Size: Φ2.0mm Wavelength Range: 850~1700 nm

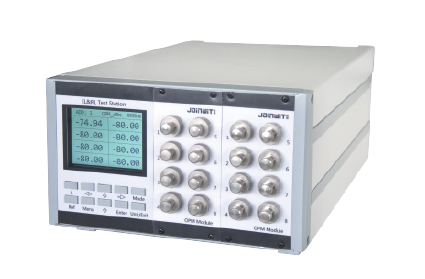

The JW8105 is a flexible and reliable high-performance optical power meter with excellent dynamic range and measurement linearity. It can be flexibly configured with 8~16 channels according to the usage scenario and directly integrated into automated testing and production systems, providing high-precision, multi-channel power measurement for the R&D and mass production of optical devices and modules.

Detector Type: InGaAs Detector Size: Φ2.0mm Wavelength Range: 850~1700 nm

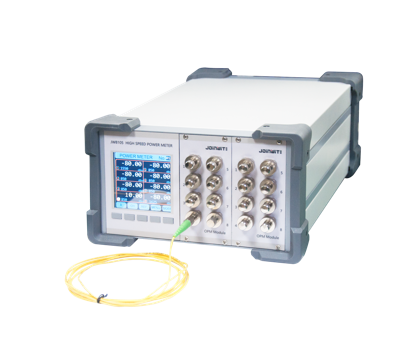

The JW8105A/S is a high-precision optical power test platform integrating high-speed sampling, multi-wavelength programmability, and polarization analysis. The device adopts 100μs high-speed sampling technology, supports an adjustable sampling rate up to 10Ksps and large dynamic range measurement, features PDL (polarization dependent loss) testing, trigger storage, and analog voltage output functions, and offers optional Ethernet communication and color-screen interactive interface, meeting the multi-scenario testing needs of precision optical components such as DWDM, AWG, and PLC.

Calibration Wavelength: 850 nm,1300 nm,1310 nm,1490 nm,1550 nm,1625 nm Power range: -60 dBm〜+10(VC6-OPM) Resolution [0.1 dB when <-55 dBm]: 0.01 dB (0.1 dB when <-55 dBm)

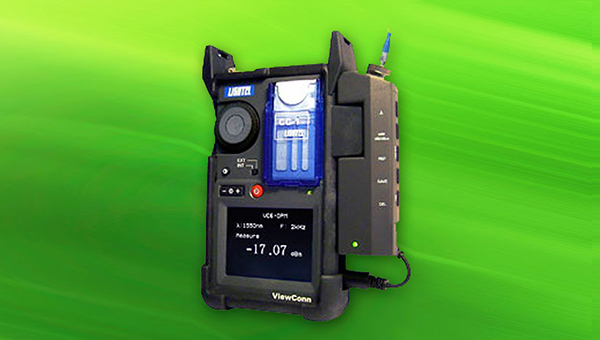

The VC6-OPM and VC6-OPM-H are Lightel's optical power meters for integration with ViewConn®. The VC6-OPM or VC6-OPM-H can store up to 999 readings and share ViewConn's battery and large, easy-to-read display screen. They add precise optical power testing to ViewConn's cleaning and inspection functions, creating an all-in-one 3-in-1 handheld device.

Calibration Wavelength: 850 nm,1300 nm,1310 nm,1490 nm,1550 nm,1625 nm Power range: -45 dBm〜+26(VC6-OPM-H) Resolution [0.1 dB when <-55 dBm]: 0.01 dB (0.1 dB when <-55 dBm)

The VC6-OPM and VC6-OPM-H are Lightel's optical power meters for integration with ViewConn®. The VC6-OPM or VC6-OPM-H can store up to 999 readings and share ViewConn's battery and large, easy-to-read display screen. They add precise optical power testing to ViewConn's cleaning and inspection functions, creating an all-in-one 3-in-1 handheld device.
