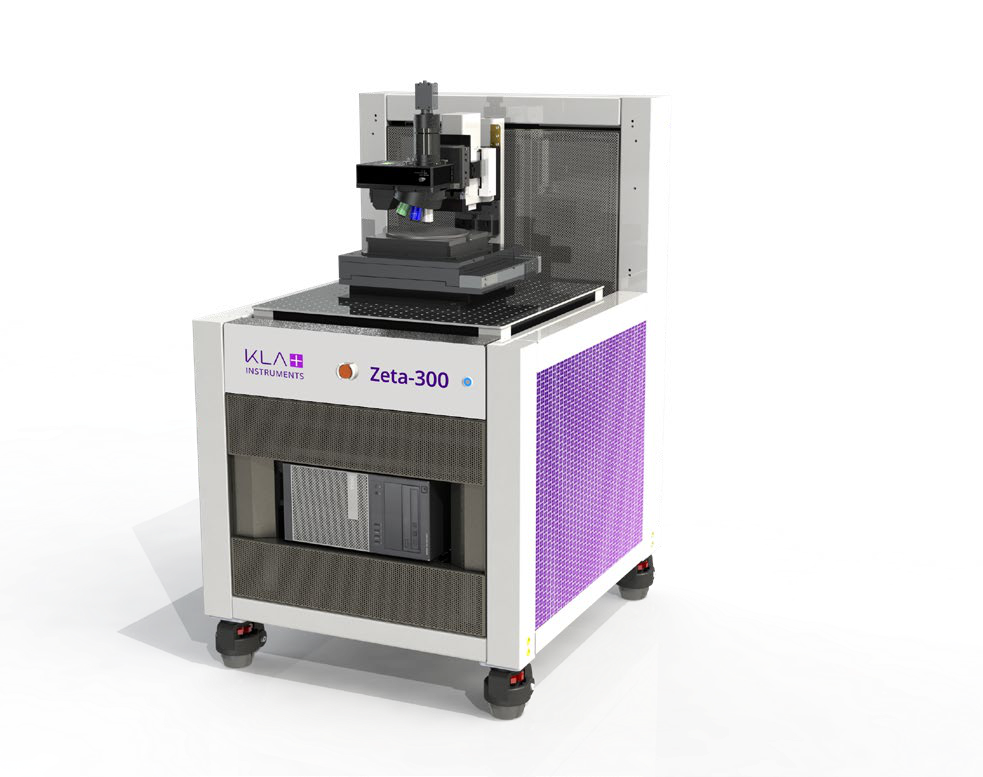

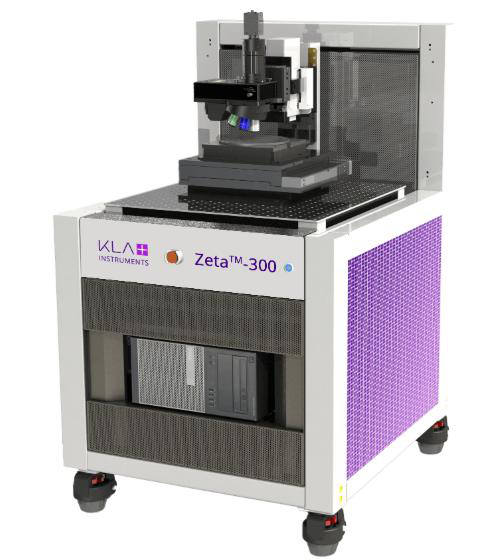

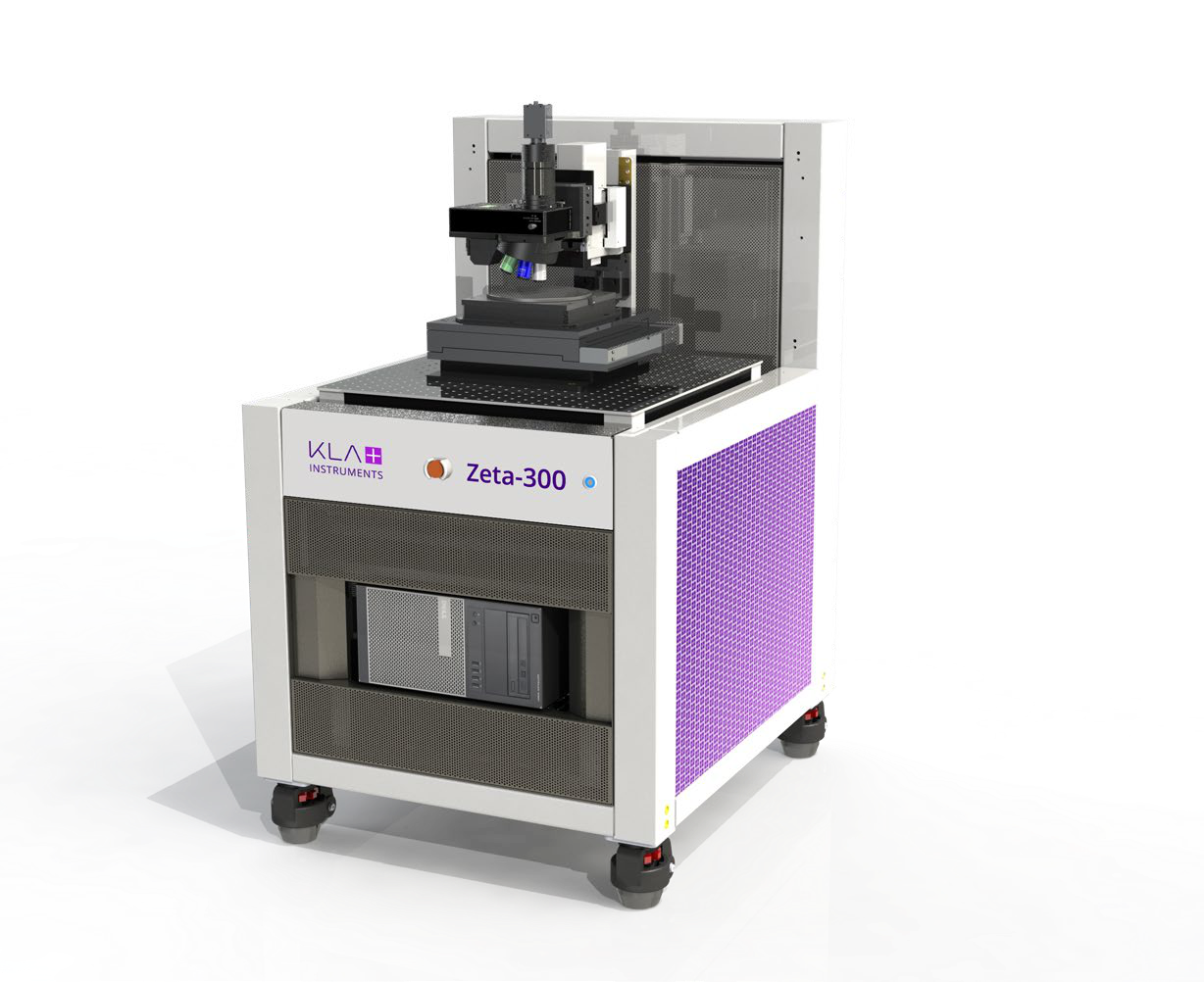

Zeta-300
Zeta-300 is a fast, non-contact 3D optical profiler designed for precise surface measurement and analysis.
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|
| Scanning Range | 280μm |
| Sample Stage Size | 150×150mm, 200×200mm, 300×300mm |
| Imaging Resolution | 5MP |
| Light Source | 405nm LED |
| Measurement Sensitivity | >1μm |
| Scanning Mode | 3D scanning, white light interferometry |
| Measurement Range | 30nm to 100μm |
| Sample Type | Transparent |
| Sample Type | thin films |
| Sample Type | microfluidic devices |
| Auto Focus | Supported |
| Data Analysis | ISO 2D and 3D standards, AOI, thin film thickness analysis |
Applications
Key Features
Datasheet
Supplier Information
Related Products
-
OPS-1000 3D Optical Profiler
Optical Surface Profiler
Santec
Scanning Range: Wide Sensitivity: High Scanning Speed: Fast
The OPS-1000 is designed to support R&D and production environments, delivering fast, accurate, and wide 3D object scans with high sensitivity, capturing surfaces other profilers may miss.
-
Keyence Laser Displacement Sensor
Optical Surface Profiler
Keyence
Measuring Range: 20mm-200mm Resolution: 0.01mm Sampling Speed: 80kHz
The Keyence Laser Displacement Sensor is a high-precision measurement device designed for accurate distance and position detection in various industrial applications.
-
Tencor P-170 Stylus Profiler
Optical Surface Profiler
Ybsemi-Solution
Scan Length: ≤200mm Vertical Range: ≤1mm Force Control Range: 0.03g-50g
The Tencor P-170 Stylus Profiler is a cassette-to-cassette system designed for high-precision surface measurement. It offers advanced capabilities for 2D and 3D scanning, step height measurement, roughness analysis, and thin film stress evaluation, making it ideal for semiconductor, LED, MEMS, and data storage applications.
-

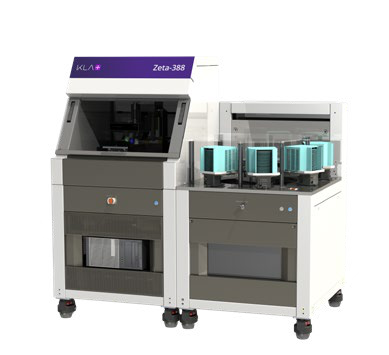

Zeta-388 Optical Profiler
