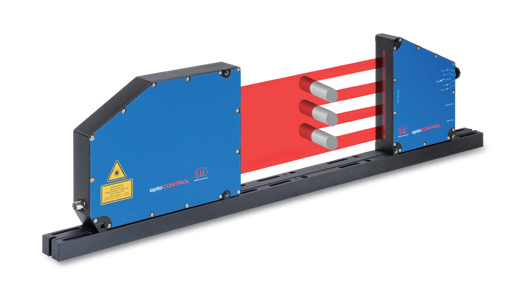

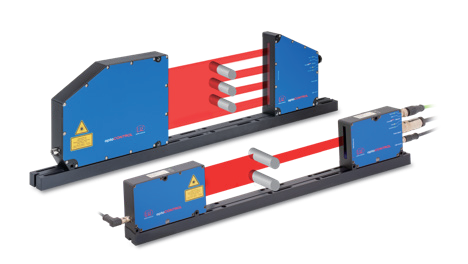

optoCONTROL Series
The optoCONTROL series offers high-precision optical micrometers designed for industrial applications. These devices utilize advanced laser and LED technologies to measure dimensions, positions, and diameters with exceptional accuracy.
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|
| Measuring Range ODC1200 | 2-16mm |
| Measuring Range ODC1200/90 | 2-16mm |
| Measuring Range ODC1201 | 20-30mm |
| Resolution ODC1200 | 8μm |
| Resolution ODC1200/90 | 8μm |
| Resolution ODC1201 | 50μm |
| Linearity ODC1200 | ±2%FSO |
| Linearity ODC1200/90 | ±2%FSO |
| Linearity ODC1201 | ±3.5%FSO |
| Measuring Frequency ODC1200 | 100kHz |
| Measuring Frequency ODC1200/90 | 100kHz |
| Measuring Frequency ODC1201 | 100kHz |
| Measuring Range ODC2520-46 | 46mm |
| Measuring Range ODC2520-46/90 | 46mm |
| Measuring Range ODC2520-95 | 95mm |
| Measuring Range ODC2520-95/270 | 95mm |
| Resolution ODC2520-46 | 1μm |
| Resolution ODC2520-46/90 | 1μm |
| Resolution ODC2520-95 | 2μm |
| Resolution ODC2520-95/270 | 2μm |
| Linearity ODC2520-46 | ±12μm |
| Linearity ODC2520-46/90 | ±12μm |
| Linearity ODC2520-95 | ±15μm |
| Linearity ODC2520-95/270 | ±20μm |
| Measuring Frequency ODC2520-46 | 2.5kHz |
| Measuring Frequency ODC2520-46/90 | 2.5kHz |
| Measuring Frequency ODC2520-95 | 2kHz |
| Measuring Frequency ODC2520-95/270 | 2kHz |
