BAL02-T12803A BAL series measuring light curtain
Save to Favorites
Specifications

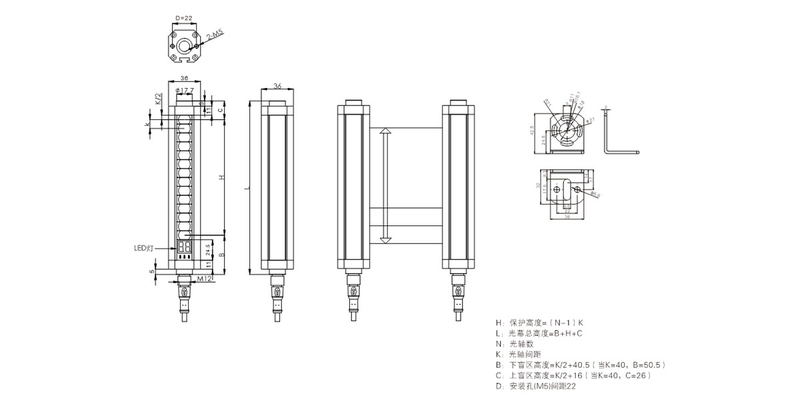

| Parameter | Value |
|---|---|
| Working Principle | Photoelectric sensor |
| Detection method | Through-beam |
| Light source | Infrared LED |
| Protection distance | 0.3~3.0 m |
| Minimum detectable object diameter | Opaque objects of Ø3.75mm or larger |
| Optical axis spacing | 2.5 mm |
| Number of optical axes | 128 |
| Protection height | 317.5 mm |
| Light curtain height | 376.5 mm |
| Cross-section dimensions | 36.0 mm × 36.0 mm |
| Switching mode | Breaks upon object detection |
| Output Mode | Analog current: 4~20 mA |
| Synchronization type | Line synchronization |
| Response Time | ≤15 ms |
| Operating voltage | 12~24 V DC ±10 % |
| Current Consumption | ≤200 mA |
| Power consumption | 3~8 W |
| Load Current | ≤150 mA |
| Insulation Resistance | ≥100 MΩ/500 V DC |
| Dielectric withstand voltage | 1000 V AC, 50/60 Hz, 1 minute |
| Protection circuit | Reverse polarity protection/Short-circuit protection/Surge protection |
| Operating Temperature | -10 ℃~55 ℃ (no freezing) |
| Storage Temperature | -15 ℃~60 ℃ (no freezing) |
| Working Humidity | 35 %~85 % RH (no condensation) |
| Storage humidity | 35 %~95 % RH (no condensation) |
| Ambient illuminance | Incandescent lamp ≤3000 Lux; sunlight ≤10000 Lux |
| Vibration Resistance | 10~55 Hz, Double Amplitude 1.5 mm, X/Y/Z directions each 2 hours |
| IP Rating | IP65 |

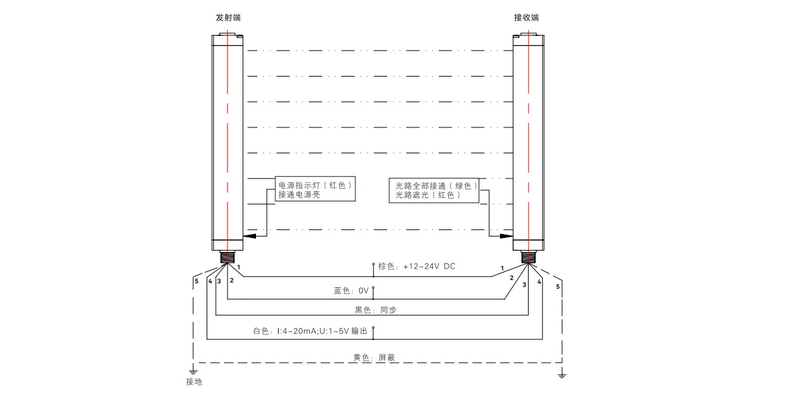

| Connection Method | M12/5-pin connector |
| Material | Aluminum alloy |
| Accessories | Bracket, screws, M12/5-core cable (connector at tail end) |
Datasheet
