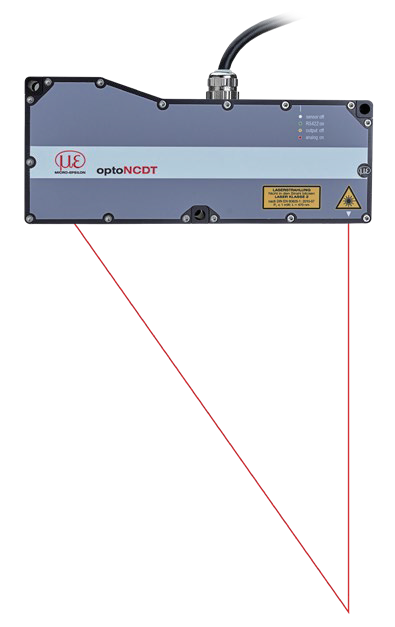

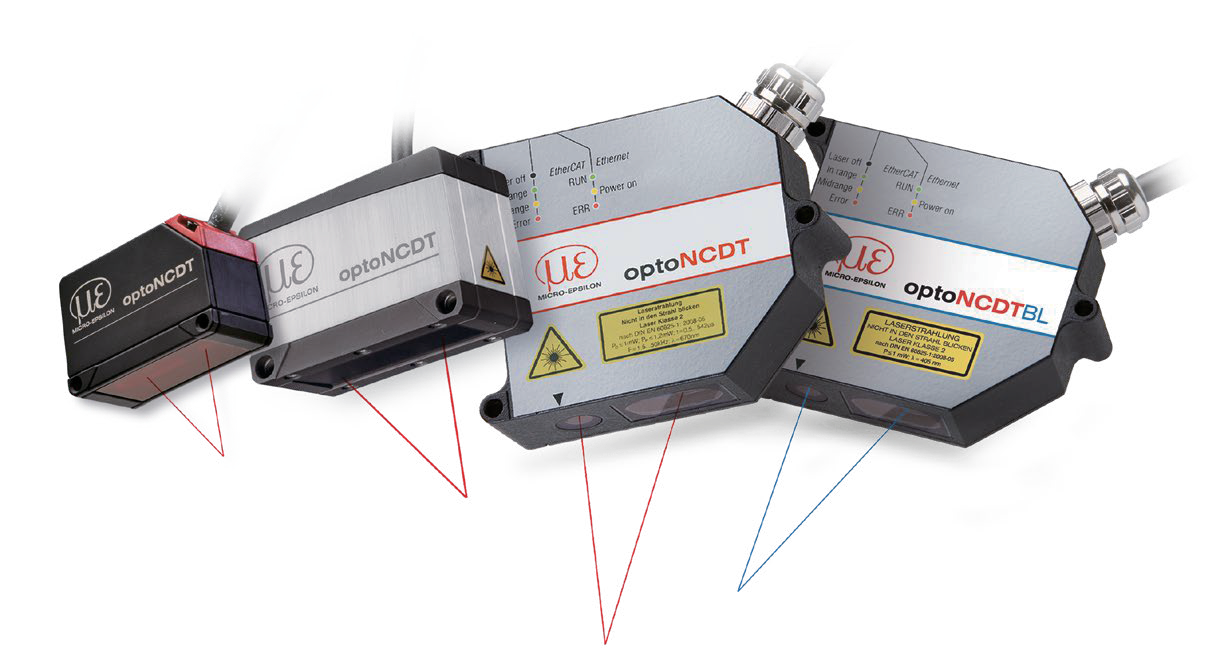

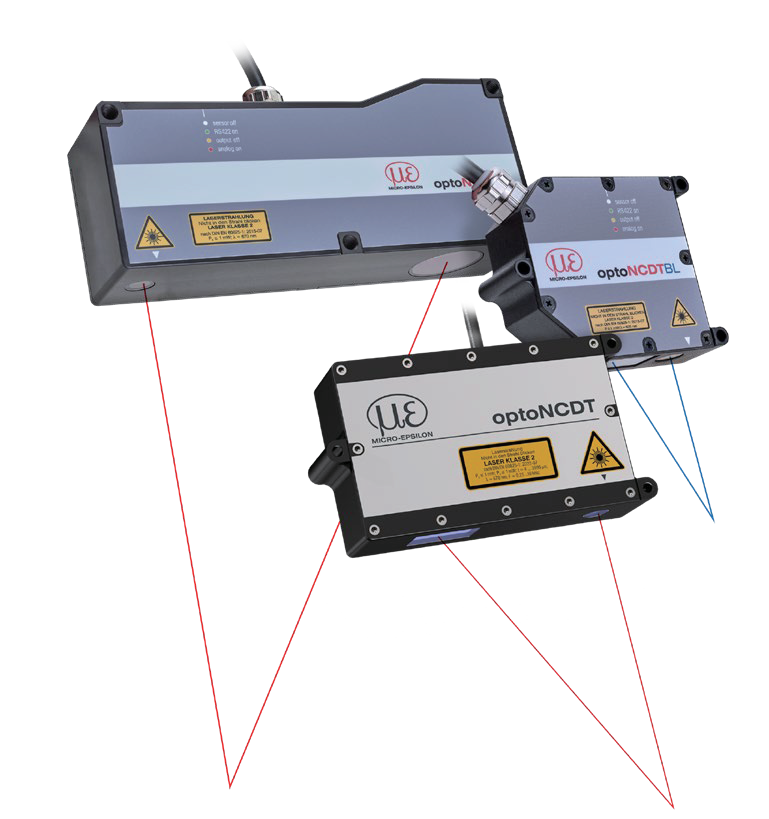

optoNCDT
optoNCDT is a high-performance laser displacement sensor series designed for precise measurement of distance, position, and vibration. It is widely used in industrial automation, quality control, and research applications.
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|
| Measuring Range ILD1220-10 | 10-500mm |
| Measuring Range ILD1220-25 | 10-500mm |
| Measuring Range ILD1220-50 | 10-500mm |
| Measuring Range ILD1420LL | 10-50mm |
| Measuring Range ILD1420CL1 | 10-50mm |
| Repeatability ILD1220-10 | 1μm |
| Repeatability ILD1220-25 | 1μm |
| Repeatability ILD1220-50 | 1μm |
| Repeatability ILD1420LL | 0.5μm |
| Repeatability ILD1420CL1 | 0.5μm |
| Linearity ILD1220-10 | 0.10% |
| Linearity ILD1220-25 | 0.10% |
| Linearity ILD1220-50 | 0.10% |
| Linearity ILD1420LL | 0.08% |
| Linearity ILD1420CL1 | 0.08% |
| Measuring frequency | Up to 49.14kHz |
| Light Source | Red and blue laser |
| Power Supply | 11-30VDC |
| Protection Class | IP67 |
| Operating Temperature Range | 0-50°C |
| Storage Temperature Range | -20-70°C |
| Weight | 185g (sensor only), 300g (with cable) |
| Digital Interface | RS422, EtherCAT, PROFINET, Ethernet/IP |
| Analog Output | 4-20mA, 0-10V |
| Switch Output | npn, pnp, push-pull |
| Spot Size | Varies by model, e.g., 45x40μm for ILD1220-10 |
| Permissible Ambient Light | Up to 50,000lx |
| Material | Aluminum housing |
| Measurement Accuracy | ±0.005% FSO/K |
| Shock Resistance | 15g/6ms |
| Vibration Resistance | 2g/20-500Hz |
| Connection Type | Integrated cable, Sub-D, M12 |
| Mounting Method | Screw connection |
| Mounting Method | direct fixation |
| Signal Input | HTL/TTL |
| Signal Output | HTL/TTL, RS422, EtherCAT, PROFINET, Ethernet/IP |
