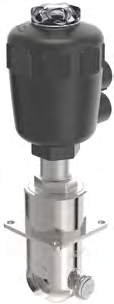

2707型带气动执行机构的夹管阀
The 2707 type pinch valve with pneumatic actuator is designed for use in various applications requiring precise flow control. It is compatible with CLASSIC or ELEMENT actuators and is suitable for different tube diameters.
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|
| Dimensions | Refer to section 4.2 |
| Material | Stainless steel A351 Gr.CF3M, PPS, PA |
| Actuator CLASSIC | PA |
| Actuator INOX | Stainless steel 1.4404 |
| Actuator ELEMENT | Stainless steel 1.4561 (316Ti) |
| Operating Pressure | 4.3...10.0bar |
| Control Pressure (SF A) | 4.3...10.0bar |
| Tube Inner Diameter | 6.35mm-38.1mm (1/4 inch-1 1/2 inch) |
| Tube Outer Diameter | 3.18mm-25.4mm (1/8 inch-1 inch) |
| Ambient Temperature Range | 0°C to +60°C |
| Explosion Proof Certification | ATEX |
| Explosion Proof Certification | IECEx |
| Maximum Surface Temperature | T2: +300°C, T3: +200°C, T4: +135°C |
| Ambient Temperature | T2: -40°C to +130°C, T3: -40°C to +130°C, T4: -40°C to +100°C |
| Maximum Medium Temperature | T2: +285°C, T3: +185°C, T4: +125°C |
