PDM-5203 Resistance Vacuum Gauge
The PDM-5203 Resistance Vacuum Gauge is a precision instrument designed for measuring vacuum pressure with high accuracy and reliability.
Save to Favorites
Overview

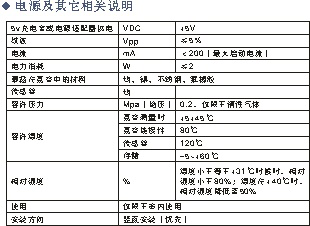

Specifications
| Parameter | Value |
|---|---|
| Power Supply Voltage | 5VDC |
| Ripple | ≤5%Vpp |
| Current | <200mA |
| Power Consumption | ≤2W |
| Allowable Pressure | 4kPa |
| Allowable Temperature | -40°C to 45°C |
| Allowable Humidity | 30% |
| Allowable Gas | 120°C |
| Storage Temperature | -60°C to 60°C |
| Relative Humidity | ≤90% |
