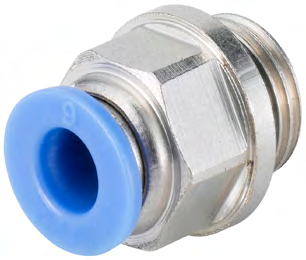

Type TVG002 Push-in Connectors
The Type TVG002 Push-in Connectors are versatile and reliable components designed for use in fluid control systems. They are available in various materials, including nickel-plated brass, stainless steel, POM, and PBT, making them suitable for a wide range of applications involving air, neutral gases, and water.
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|
| Material | Nickel-plated brass, Stainless steel, POM, PBT |
| Operating Medium | Air |
| Operating Medium | neutral gases |
| Operating Medium | fluids |
| Medium Temperature Range (Nickel-plated brass) | -10°C to +70°C |
| Medium Temperature Range (Stainless steel) | -20°C to +150°C |
| Medium Temperature Range (POM) | -20°C to +70°C |
| Medium Temperature Range (PBT) | 0°C to +60°C |
| Seal Material of O-ring (Nickel-plated brass) | NBR |
| Seal Material of O-ring (Stainless steel) | FKM |
| Seal Material of O-ring (POM) | NBR |
| Seal Material of O-ring (PBT) | NBR |
| Nominal Pressure (Nickel-plated brass) | Max. 16bar |
| Nominal Pressure (Stainless steel) | Max. 20bar |
| Nominal Pressure (POM) | Max. 10bar |
| Nominal Pressure (PBT) | 10bar |
