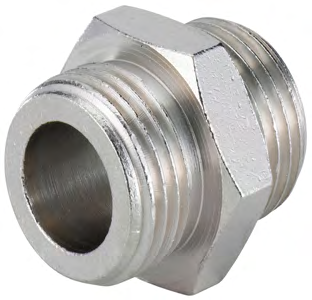

Type TVU001/TVG003 Fitting Connectors
The Type TVU001/TVG003 fitting connectors are versatile components designed for fluid control systems, available in various materials such as nickel-plated brass, stainless steel, plastic, and aluminum. They are suitable for a wide range of applications requiring reliable and durable connections.
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|
| Maximum Nominal Pressure (Nickel-plated brass) | 60bar |
| Maximum Nominal Pressure (Stainless steel) | 40bar |
| Maximum Nominal Pressure (Plastic) | 10bar |
| Maximum Nominal Pressure (Aluminum) | 16bar |
| Dimensions | Refer to ordering information |
| Material | Nickel-plated brass, stainless steel, plastic, aluminum |
Applications
Key Features
Datasheet
Supplier Information
