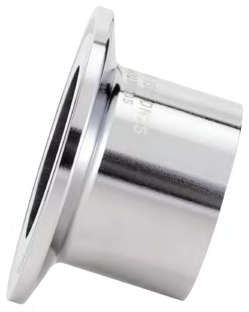

Type BBS-25 Clamp Socket
The Type BBS-25 clamp socket is part of a modular system designed for secure and hygienic connections in fluid control systems. It complies with DIN 32676 standards and is compatible with various clamp connections available in the market.
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|
| Material Wetted | Stainless steel 1.4435/316L, special materials on request |
| Material Non-wetted | Stainless steel 1.4305/303 or equivalent |
| Seal Material | EPDM |
| Seal Material | PTFE |
| Surface Quality | Wetted surface: RA < Ra 0.76μm (ASME BPE SF3), other surfaces on request |
| Operating Pressure DIN DN 08...DN 40 | 25bar |
| Operating Pressure DIN DN 50...DN 65 | 16bar |
| Operating Pressure DIN DN 80...DN 100 | 10bar |
| Operating Pressure ISO DN 08...DN 32 | 25bar |
| Operating Pressure ISO DN 40...DN 100 | 10bar |
| Operating Pressure ASME DN 1/4''...DN 1 1/2'' | 25bar |
| Operating Pressure ASME DN 2''...DN 3'' | 16bar |
| Operating Pressure ASME DN 4'' | 10bar |
| Operating Medium | Gases or liquids |
| Ambient temperature | -20...+80°C |
| Certificate | Material certificate 3.1 |
| FDA Compliance | FDA Code of Federal Regulations |
| USP Compliance | United States Pharmacopeial Convention (USP) |
