Optical Coating Mirror

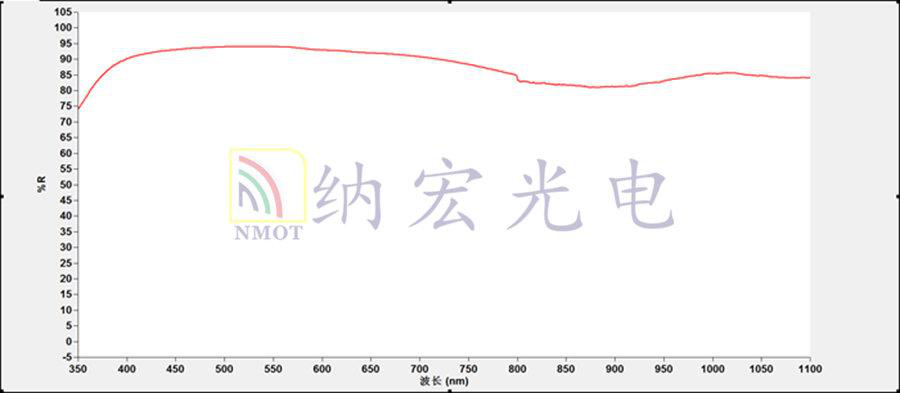

Reflection Wavelength Range: 0-20μm Reflection Rate: ≥80%

This product is a high-performance optical component designed for precise reflection rate control across a wide wavelength range.

Diameter: Customizable Thickness: Customizable Surface Quality: 40/20

The 45° Beamsplitter Plate is a high-precision optical component designed to split a beam of light into two separate beams at a 45-degree angle. It is made from high-quality optical glass and features excellent surface flatness and parallelism, ensuring minimal distortion and high performance.

Diameter: Customizable Thickness: Customizable Reflection Angle: 45°

The 45° Mirror is a high-precision optical component designed for applications requiring precise light reflection and redirection. It is crafted with high-quality materials to ensure excellent performance and durability.

Diameter: Customizable Radius of curvature: Customizable Thickness: Customizable

High-quality concave and convex mirrors designed for precise optical applications, offering excellent reflectivity and durability.

Geometry / Shape: Octagonal; Rectangular with chamfered corners Substrate Material: Optical glass / Fused silica / Si / SiC (optional) Coating Type: Protected gold; Dielectric HR (optional)

The Precision Optical Scanning Mirror (Galvo Mirror) series consists of lightweight, flat reflective optics shown in octagonal and chamfered-rectangular geometries, designed for galvanometer-based laser beam steering. The polygonal shape reduces moving mass and moment of inertia, enabling high-speed, high-accuracy scanning. Visible coating options include gold-coated versions (gold-orange appearance) for broadband near-IR to far-IR reflection, and dielectric high-reflection versions (champagne appearance with colored edge) for specific laser wavelengths from UV to NIR. The mirrors combine high reflectivity, excellent surface flatness and fine surface quality to preserve wavefront fidelity and spot quality. Specifications listed are typical values for this product class; dimensions, substrate materials, thickness and coating bands are customizable upon request.
