Plano-Convex Lens
The Plano-Convex Lens is a high-quality optical component designed for applications requiring precise light focusing and collimation. It is made from optical-grade materials such as K9 and BK7 glass, ensuring excellent optical performance.
Save to Favorites
Overview

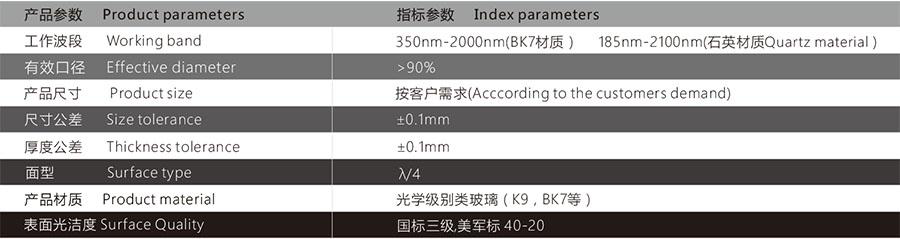

Specifications
| Parameter | Value |
|---|---|
| Working band (BK7 material) | 350nm-2000nm |
| Working band (Quartz material) | 185nm-2100nm |
| Effective diameter | >90% |
| Product size | According to the customers demand |
| Size Tolerance | ±0.1mm |
| Thickness Tolerance | ±0.1mm |
| Surface type | λ/4 |
| Product material | Optical-grade glass (K9, BK7, etc.) |
| Surface Quality | International standard MIL 40-20 |
Applications
Key Features
Datasheet
