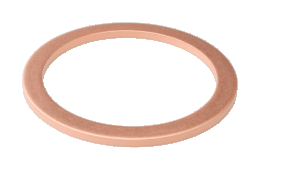

Copper Gasket
INFICON CF copper gaskets are manufactured according to ISO 3669 and the latest TS/ISO 3669-2 standards. They are designed for ultra-high vacuum applications with pressures as low as 1 x 10^-12 mbar and baking temperatures up to 400°C.
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|
| Specification A | 2.1 |
| Specification B DN 16 CF | 21.3 |
| Specification B DN 40 CF | 48.1 |
| Specification B DN 63 CF | 82.4 |
| Specification B DN 100 CF | 120.5 |
| Specification B DN 160 CF | 171.3 |
| Specification B DN 200 CF | 222.1 |
| Specification B DN 250 CF | 272.9 |
| Specification B DN 300 CF | 326.2 |
| Specification B DN 350 CF | 376.5 |
| Specification C DN 16 CF | 16.2 |
| Specification C DN 40 CF | 39 |
| Specification C DN 63 CF | 63.6 |
| Specification C DN 100 CF | 101.8 |
| Specification C DN 160 CF | 152.6 |
| Specification C DN 200 CF | 203.4 |
| Specification C DN 250 CF | 254.2 |
| Specification C DN 300 CF | 307 |
| Specification C DN 350 CF | 357 |
| Package DN 16 CF | 10 pcs |
| Package DN 40 CF | 10 pcs |
| Package DN 63 CF | 10 pcs |
| Package DN 100 CF | 10 pcs |
| Package DN 160 CF | 10 pcs |
| Package DN 200 CF | 10 pcs |
| Package DN 250 CF | 5 pcs |
| Package DN 300 CF | 1 pcs |
| Package DN 350 CF | 1 pcs |
| Material | Copper OFHC-/2.0040 |
