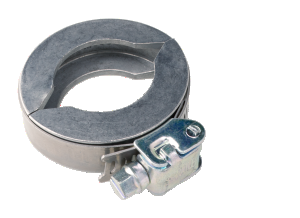

Hose Clip Clamping Ring
INFICON ISO-KF fittings are manufactured according to ISO 2861/1, DIN 28403, and Pneurop 6606. These fittings are standard components for all vacuum and high vacuum applications, designed and tested for leak rates less than 1 × 10⁻⁹ mbar l/s.
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|
| Dimension A DN 10-16 ISO-KF | 42 |
| Dimension A DN 20-25 ISO-KF | 52 |
| Dimension A DN 32-40 ISO-KF | 67 |
| Dimension B DN 10-16 ISO-KF | 54 |
| Dimension B DN 20-25 ISO-KF | 64 |
| Dimension B DN 32-40 ISO-KF | 79 |
| Dimension C DN 10-16 ISO-KF | 16 |
| Dimension C DN 20-25 ISO-KF | 16 |
| Dimension C DN 32-40 ISO-KF | 16 |
| Clamping ring half DN 10-16 ISO-KF | Aluminum 380.0 |
| Clamping ring half DN 20-25 ISO-KF | Aluminum 380.0 |
| Clamping ring half DN 32-40 ISO-KF | Aluminum 380.0 |
| Band DN 10-16 ISO-KF | Stainless Steel |
| Band DN 20-25 ISO-KF | Stainless Steel |
| Band DN 32-40 ISO-KF | Stainless Steel |
| Bolt, nut & thread DN 10-16 ISO-KF | Steel zinc plated |
| Bolt, nut & thread DN 20-25 ISO-KF | Steel zinc plated |
| Bolt, nut & thread DN 32-40 ISO-KF | Steel zinc plated |
Applications
Key Features
Datasheet
Supplier Information
