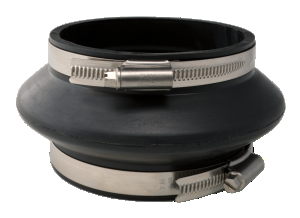

Flexible Tube with Clamping Ring
INFICON ISO-K premium connectors are manufactured according to ISO 1609, DIN 28404, and Pneurop 6606 standards. These connectors are ideal for vacuum and high vacuum pipeline applications, ensuring reliable sealing and low leakage rates.
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|
| Type DN63 ISO-K | 212-186 |
| Type DN100 ISO-K | 212-187 |
| Type DN160 ISO-K | 212-188 |
| Specification A DN63 ISO-K | 70 |
| Specification A DN100 ISO-K | 72 |
| Specification A DN160 ISO-K | 72 |
| Specification B DN63 ISO-K | 14 |
| Specification B DN100 ISO-K | 8 |
| Specification B DN160 ISO-K | 8 |
| Specification C DN63 ISO-K | 24 |
| Specification C DN100 ISO-K | 26 |
| Specification C DN160 ISO-K | 26 |
| Specification D DN63 ISO-K | 75 |
| Specification D DN100 ISO-K | 106 |
| Specification D DN160 ISO-K | 155 |
| Specification E DN63 ISO-K | 120 |
| Specification E DN100 ISO-K | 150 |
| Specification E DN160 ISO-K | 200 |
| Sleeve | CR |
| Flexible Tube Clamping Ring | Stainless steel |
| Tightening Torque Max | 4Nm |
| Internal Pressure | Max.1bar |
