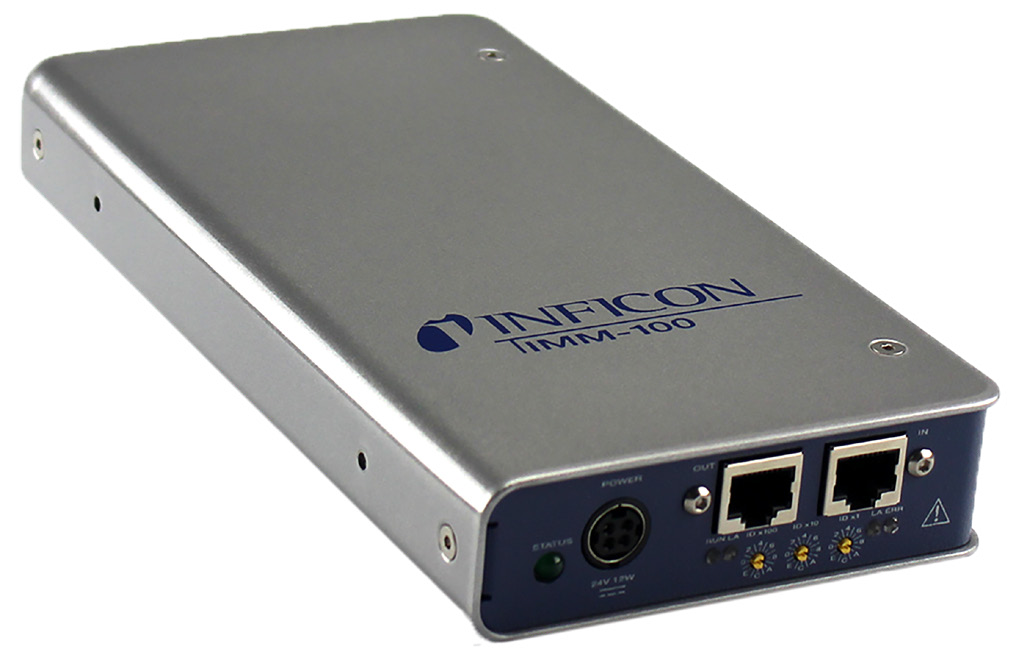

IMM-100 Thin Film Deposition Monitor

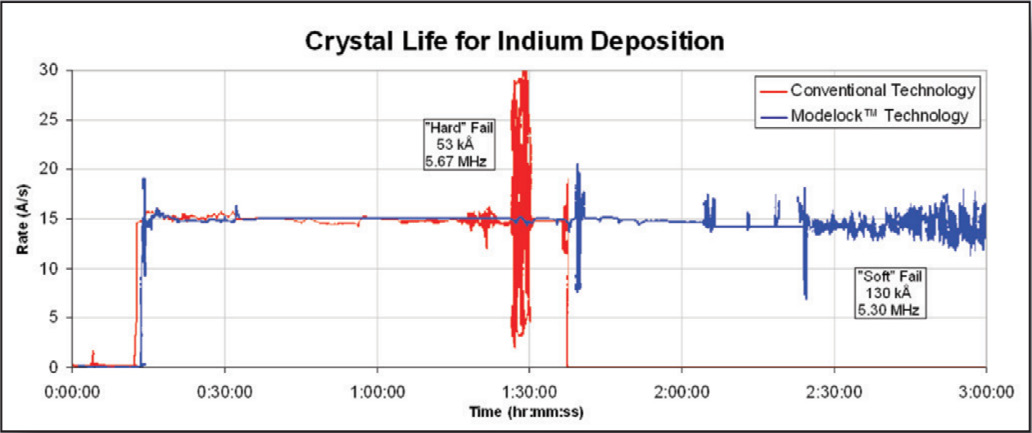

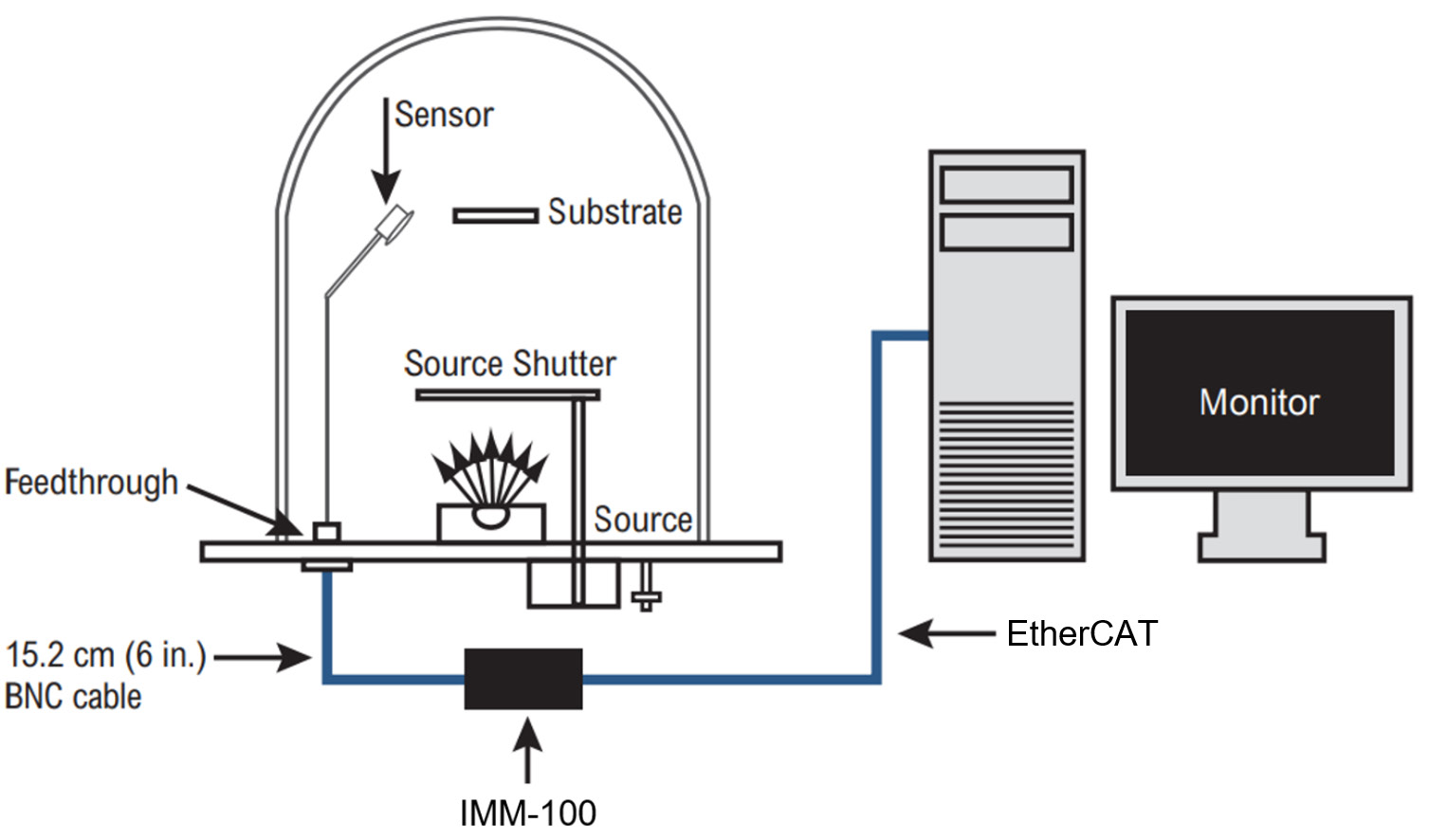

The IMM-100 is a deposition monitor designed with ModeLock technology to ensure maximum reproducibility and uniformity in thin film deposition processes. It offers high thickness accuracy, excellent measurement resolution, and minimal rate noise, making it a reliable tool for precision monitoring.
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|
| Sensor Inputs | One |
| Sensor Inputs | female BNC |
| Measurement Frequency Range | 6.0 to 4.5MHz (fixed) |
| Frequency Resolution | ±0.0035Hz @ 6MHz |
| Measurement Interval | 0.1s |
| Reference Frequency Stability | ±2ppm @ 0-50°C |
| Rate and Thickness Resolution | 0.0042Å (new crystal); 0.0076Å (crystal @ 4.5MHz) over 100ms sample for material density=1.0, Z-Ratio=1.0 |
| Measurement Technique | ModeLock |
| Input Voltage | 24V (dc) |
| Operating Temperature | 0 to 50°C (32 to 122°F) |
| Size | 222.6mm (8.76in) x 106.1mm (4.18in) x 35.3mm (1.39in) |
| Weight | 0.48kg (1.05lbs) |
| Communication Type | EtherCAT, 2 RJ45 jacks, supports data daisy chaining. Explicit device ID via switches |
Applications
Key Features
Datasheet
Supplier Information
Related Products
-
750-7020-G5 Sensor
Measurement Devices
Inficon
Maximum temperature: 200°C Sensor Head Size (Maximum Envelope): 23.9mm O.D. x 28.9mm (0.94in O.D. x 1.14in) Mounting feedthrough: KF25 flange
The INFICON 750-7020-G5 sensor is designed for semiconductor chamber foreline monitoring, offering a reliable solution for precursor delivery fault detection. It integrates with FabGuard via the IMM-200 module to actively monitor excess precursor and derivatives.
-
IQM-233 Thin Film Deposition Controller Card
Measurement Devices
Inficon
Number of Sensor Inputs: 3 Sensor Connectors: SMA - Includes one SMA/BNC adapter Measurement Frequency Range: 6.1 to 4.0MHz (adjustable)
The IQM-233 is a PCI Express card designed to transform a computer into a thin film deposition controller. It is ideal for system OEMs or users looking to integrate a deposition controller into a computer or PLC-controlled system. The card is compatible with INFICON single and dual sensor heads and offers advanced features for precise thin film deposition control.
-
SQM-160 Multi-Film Rate/Thickness Monitor
Measurement Devices
Inficon
Sensor Inputs: Standard: two; optional: six Measurement Frequency Range: 6.5 to 10MHz (adjustable) Frequency Resolution: Standard: ±0.30Hz @6MHz; High resolution option: ±0.03Hz @6MHz
The SQM-160 uses proven quartz crystal sensor technology to measure rate and thickness in thin film deposition processes. It offers high accuracy, low cost, and user-friendly operation, making it ideal for various applications in thin film measurement.
-
STM-2 USB Thin Film Thickness / Rate Deposition Monitor
Measurement Devices
Inficon
Compatible sensors: Non-shuttered single QCM sensor Sensor input: One Sensor input: female BNC
The STM-2 is a compact and cost-effective USB-powered thin film thickness and rate deposition monitor. It offers high accuracy and ease of use, making it ideal for precision measurement applications.
-
Zevision IMC300
Measurement Devices
Inficon
Crystal Frequency Range: 6.0 to 4.5MHz Frequency Resolution: 0.00056Hz @6MHz Frequency Accuracy: ±2.5ppm to 50°C
The INFICON Zevision IMC300 is a next-generation thin film deposition controller designed for precision control, maximum repeatability, and unmatched crystal efficiency, making it ideal for modern optical coating applications.
