CrystalTwo Switch

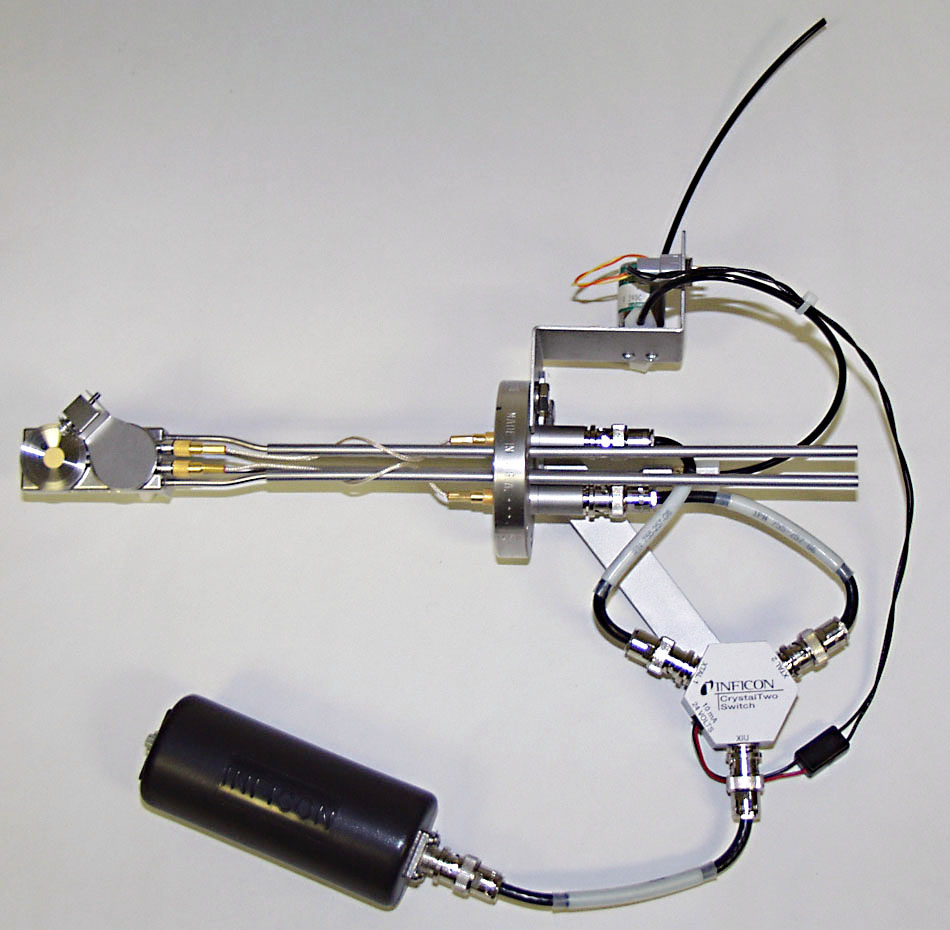

The INFICON CrystalTwo Switch allows a single Crystal Interface Unit (XIU) to sequentially communicate with two crystal transducers, minimizing electrical signal loss and ensuring optimal measurement system performance.
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|
| Part Number 779-220-G1 | CrystalTwo Switch with two 6'' (152.4mm) BNC cables |
| Part Number 779-220-G2 | CrystalTwo Switch with two 20'' (508mm) BNC cables |
| Input | quantity 1, female BNC |
| Output | quantity 2, female BNC |
| Operating Frequency | 6.0 to 4.5MHz |
| Insertion Loss | less than 1dB at specified operating frequencies |
| Basic Size | 1.5'' (38.1mm) hexagonal x 1.139'' (28.931mm) thick |
| Clearance for Connectors | 2.5'' (63.5mm) radius from hexagon's center |
| Mounting | 4 ea. #6-32 and 2 ea. #10-32 tapped holes for mounting in various orientations |
| Switching Voltage | 24V AC or DC nominal, polarity independent |
| Switching Power | 200mW, nominal |
| Control Wires | insulated hookup wire approximately 16'' (406.4mm) long, inline rectifier module allows use of AC or reverse polarity hookup |
| Humidity | 5–85% |
| Switching Time | less than 0.1 second; exclusive of measurement instrument's acquisition, optimization, and stabilization requirements |
| Accessories | two 6'' (152.4mm) male-male BNC cables or two 20'' (508mm) male-male BNC cables |
| Weight | 3.5oz (100g) |
