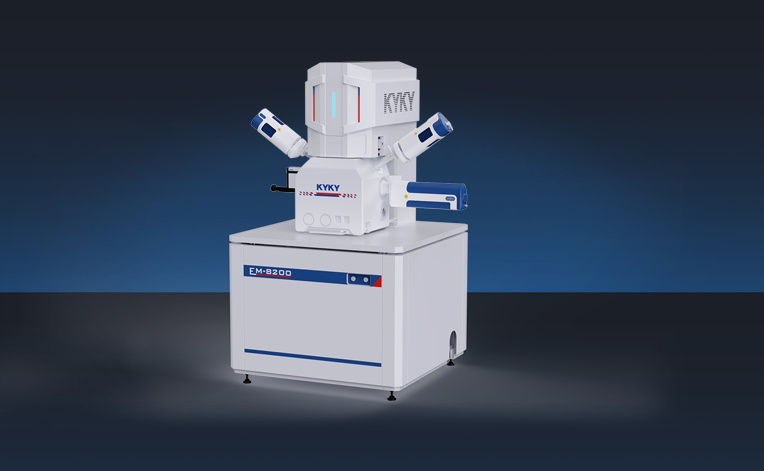

EM-8200 Scanning Electron Microscope
The EM-8200 is a high-performance scanning electron microscope designed for advanced imaging and analysis in various scientific and industrial applications.
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|
| Resolution | 1.0nm@30kV |
| Accelerating Voltage | 0.5-30kV |
| Magnification | 20x-800,000x |
| Chamber Size | Φ300mm |
| Sample Movement Range | X: 100mm, Y: 100mm, Z: 50mm, Tilt: -3° to +90° |
| Detector | SE |
| Detector | BSE |
| Detector | EDS |
| Vacuum System | Turbo molecular pump and ion pump |
| Electron Gun Type | Thermionic emission gun |
| Imaging Modes | Secondary electron imaging |
| Imaging Modes | backscattered electron imaging |
| Operating System | Windows-based software |
Applications
Key Features
Datasheet
