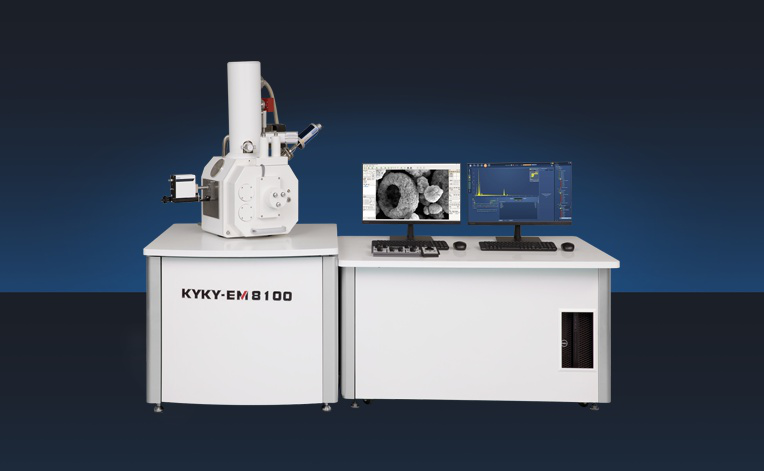

KYKY-EM8100 Scanning Electron Microscope
The KYKY-EM8100 is a high-performance scanning electron microscope designed for advanced imaging and analysis in various scientific and industrial applications.
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|
| Resolution | 3nm |
| Magnification | 10x-300,000x |
| Acceleration Voltage | 0.5kV-30kV |
| Electron Gun Type | Tungsten filament |
| Vacuum System | Turbo molecular pump and rotary pump |
| Stage Movement Range | X: 50mm, Y: 50mm, Z: 20mm, Tilt: -10° to +90°, Rotation: 360° |
| Chamber Size | Φ300mm |
| Detector type | Secondary electron detector |
| Detector type | Backscattered electron detector |
| Image Display | Dual 24-inch monitors |
| Software | Integrated analysis and imaging software |
| Power Supply | AC 220V, 50Hz |
| Dimensions | Main unit: 1200mm x 800mm x 1500mm |
| Weight | 450kg |
Applications
Key Features
Datasheet
Supplier Information
