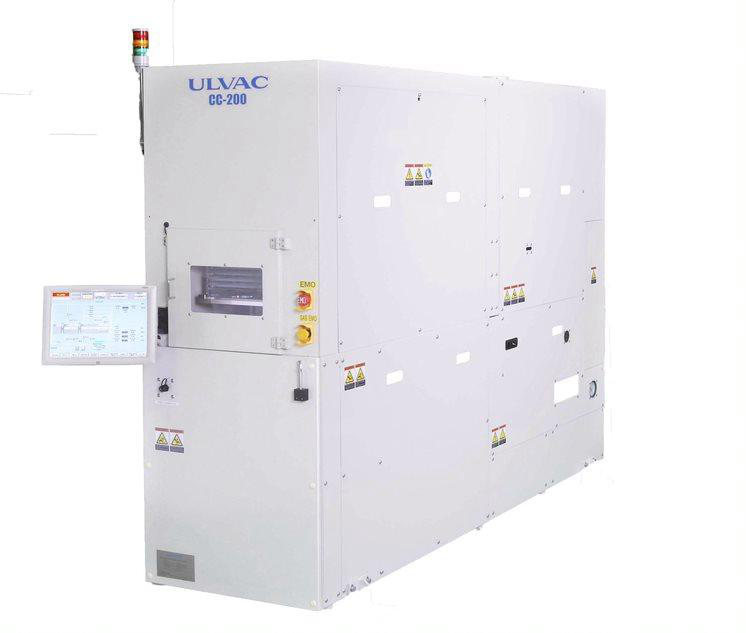

CC-200
The CC-200 is a high-performance vacuum coating system designed for advanced optical applications.
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|
| Operating Voltage | AC200V |
| Power | 10kW |
| Vacuum Degree | ≤1×10^-5Pa |
| Chamber Size | 600mm x 600mm x 600mm |
| Coating Speed | ≤5nm/s |
| Temperature Control Range | Room temperature to 300°C |
| Control System | PLC with touch screen interface |
Applications
Key Features
Datasheet
