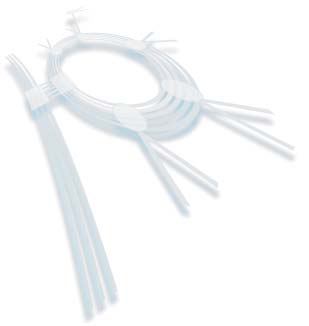

CWDM-15 3 Port Add/Drop Module
Designed for CWDM networks, Santec's CWDM-15 units are optimized for wide-pass band and low loss to reduce costs and extend reach in Metro and Access equipment. Standard CWDM 20nm channel spacing is available. Fully tested for long-term reliability, these units boast high isolation as well as low insertion loss.
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|
| Operating Temperature (°C) | -10 to 70 |
| Insertion Loss (Transmission) (dB) | ≤0.8 |
| Insertion Loss (Reflection) (dB) | ≤0.4 |
| Flatness (dB) | ≤0.4 |
| Adjacent Channel Isolation (Transmission) (dB) | ≥30 |
| Non-Adjacent Channel Isolation (dB) | ≥45 |
| Directivity (dB) | ≥45 |
| PDL (dB) | ≤0.1 |
| Return Loss (dB) | ≥50 |
| Wavelength Range (nm) | 1290-1350, 1470-1610 |
