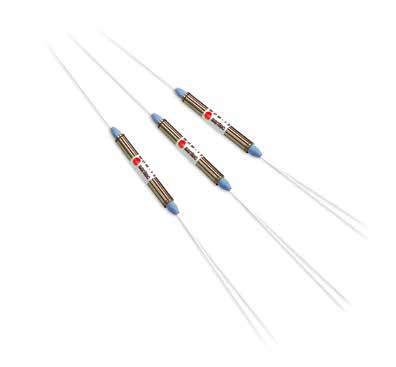

WDM-15 3 Port Add/Drop Module
Optimize your add/drop applications with Santec's WDM filters. These filters cover the ITU grid in C and L-bands for 100, 200, and 400GHz channel spacing, with custom filter profiles available upon request. Fully tested for long-term reliability, these units boast high isolation and low insertion loss.
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|
| Center Wavelength | 1550nm window, ITU grid wavelengths |
| Thermal Stability (Wavelength) | ≤0.005nm/°C |
| Directivity | ≥45dB |
| Return Loss | ≥45dB |
| Polarization Dependent Loss (PDL) | ≤0.15dB |
| Polarization Mode Dispersion (PMD) | ≤0.1ps |
| Optical Power | ≤23dBm |
| Operating Temperature | -5°C to +70°C |
| Storage Temperature | -40°C to +85°C |
| Passband Width (-0.5dB Bandwidth) 100GHz Add | ≥0.11nm |
| Passband Width (-0.5dB Bandwidth) 100GHz Drop | ≥0.11nm |
| Flatness 100GHz Add | ≤0.5dB |
| Flatness 100GHz Drop | ≤0.5dB |
| Insertion Loss 100GHz Add | ≤1.2dB |
| Insertion Loss 100GHz Drop | ≤1.2dB |
| Adjacent Channel Isolation 100GHz Add | ≥12dB |
| Adjacent Channel Isolation 100GHz Drop | ≥25dB |
| Non-adjacent Channel Isolation 100GHz Add | ≥40dB |
| Non-adjacent Channel Isolation 100GHz Drop | ≥40dB |
| Insertion Loss of Reflect Channels 100GHz Add | ≤0.5dB |
| Insertion Loss of Reflect Channels 100GHz Drop | ≤0.5dB |
| Reflect Channel Isolation 100GHz Add | ≥12dB (Typ. 15) |
| Reflect Channel Isolation 100GHz Drop | ≥12dB (Typ. 15) |
| Passband Width (-0.5dB Bandwidth) 200GHz Add | ≥0.20nm |
| Passband Width (-0.5dB Bandwidth) 200GHz Drop | ≥0.20nm |
| Flatness 200GHz Add | ≤0.5dB |
| Flatness 200GHz Drop | ≤0.5dB |
| Insertion Loss 200GHz Add | ≤1.2dB |
| Insertion Loss 200GHz Drop | ≤1.2dB |
| Adjacent Channel Isolation 200GHz Add | ≥13dB |
| Adjacent Channel Isolation 200GHz Drop | ≥30dB |
| Non-adjacent Channel Isolation 200GHz Add | ≥40dB |
| Non-adjacent Channel Isolation 200GHz Drop | ≥40dB |
| Insertion Loss of Reflect Channels 200GHz Add | ≤0.5dB |
| Insertion Loss of Reflect Channels 200GHz Drop | ≤0.5dB |
| Reflect Channel Isolation 200GHz Add | ≥12dB (Typ. 15) |
| Reflect Channel Isolation 200GHz Drop | ≥12dB (Typ. 15) |
