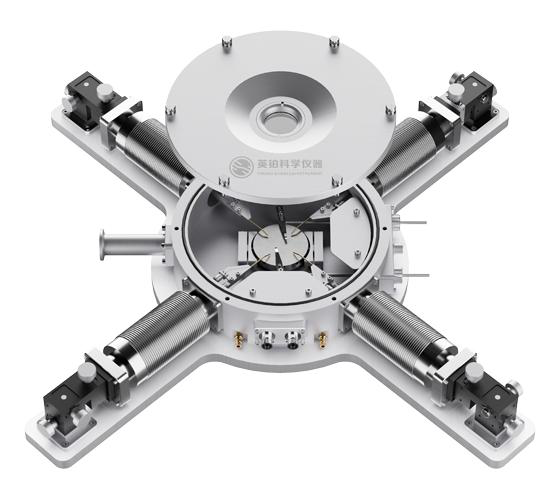

YB-VC100-LN-H-P4ED
YB-VC100-LN-H-P4ED is a high-precision cryogenic and heating system designed for optical and electrical testing applications. It offers a wide temperature range, stable control, and advanced optical features.
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|
| Cooling and Heating Method | 液氮致冷,电阻加热 |
| Temperature Control Range | -190~400℃ 真空(600℃气氛) |
| Temperature Stability | ±0.1℃ |
| Temperature Resolution | 0.1℃ |
| Heating and Cooling Rate | 0~50℃/min (可定点/程序段控温) |
| Temperature Control Method | PID |
| Temperature Sensor | PT100 |
| Optical Path | 反射光路,可升级为透射光路 |
| Window Material | 石英玻璃 |
| Window Size | Φ30mm |
| Objective Working Distance | 15mm (具体以最终方案为准) |
| Light Transmission Hole | 默认None透光孔,可升级透光孔 |
| Window Defrost | 负温下吹气除霜 |
| Probe | 可调节探针x4,手动定位 |
| Probe Interface | BNC接口x4 |
| Sample Stage Potential | 默认电悬浮,可电接地 |
| Sample Stage Size | Φ25mm |
| Sample Stage Material | 银质 |
| External Dimensions | Φ200mmx60mm (可根据客户需求调整)/外腔尺寸430x430x60mm |
| Sample Chamber Height | 15mm |
| XYZ Displacement Stroke | ±6.5mm |
| Probe Displacement Accuracy | 1μm |
