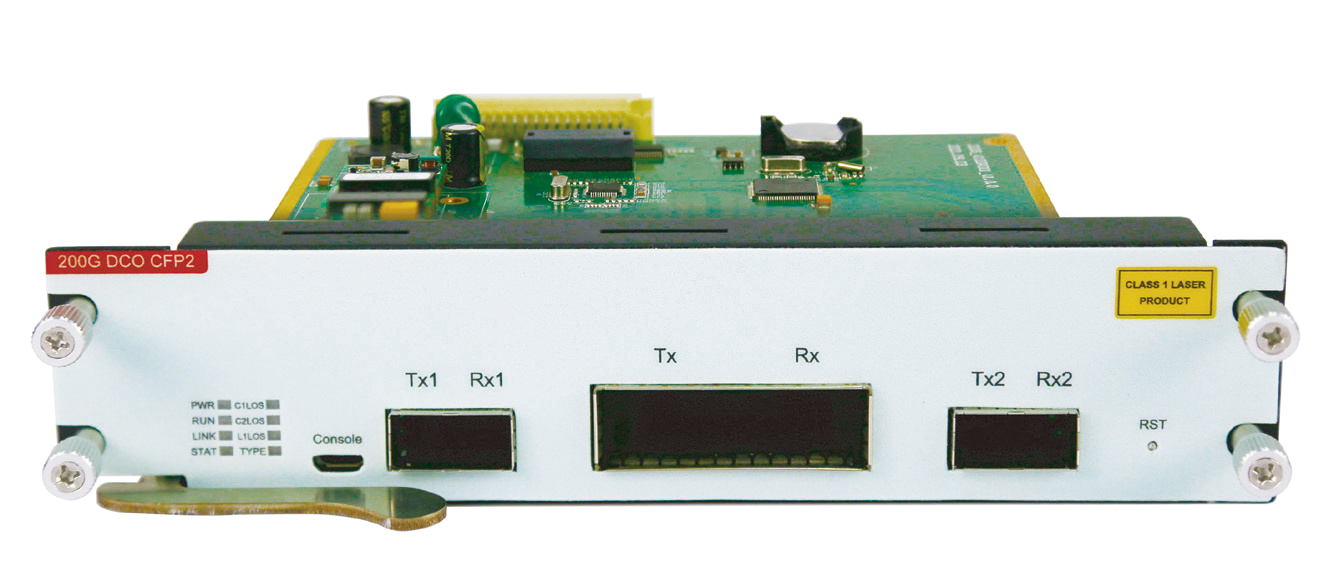

COTU200G-M1H2-DCO
The COTU200G-M1H2-DCO muxponder card adopts advanced technologies such as coherent technology, QPSK, DP-8QAM, or DP-16QAM high-order modulation, coherent DSP, and photon integration, enabling 800-2000 km transmission and supporting C-band 96-wave (50GHz) tunability. It multiplexes two 100G service signals into one 200G line signal and converts the line signal into coherent optical of one standard DWDM wavelength for wave-length division multiplexing transmission.
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|
| Model | COTU200G-M1H2-DCO |
| Port | Client side, 2*QSFP28, hot pluggable; Line side, 1 CFP2, hot pluggable |
| Line Mode | 1 channel 200G line signal uses 1 DWDM wavelength for coherent transmission |
| Relay Mode | Support 200G OEO |
| Type of Service | 100GE, OTU4 |
| Modulation Mode | DP-QPSK/DP-8QAM/DP-16QAM |
| FEC | SD-FEC/SCFEC/OFEC |
| WDM Wavelength | Support C-band 48/96 wavelengths |
| Transmission Distance | 120-2000km |
| Slots | 2 slots |
| Network Management | CLI |
| Network Management | WEB |
| Function | Optical module Los alarm; Support DDM real-time optical port information monitoring; Support no light shutdown and loopback functions |
| Dimension (H*W*D) | 45*170*245mm |
| Working Environment | Working temperature: -10°C - 60°C; Storage temperature: -40°C - 80°C; Relative humidity: 5% - 95% no condensation |
| Power Consumption | <36W |
