Precision Waveform Measurement Probes and Accessories

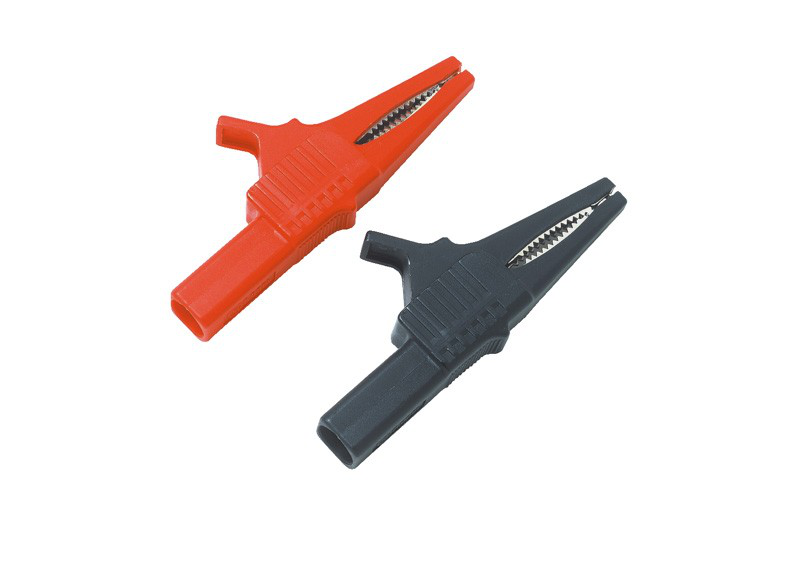

Yokogawa's precision waveform measurement probes and accessories are designed for high-speed waveform observation, high-voltage differential measurements, and current measurements ranging from 1mA to 500A. These products ensure accurate and reliable results for diverse engineering applications.
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|
| Frequency Bandwidth (MHz) | 10-5000 |
| Maximum Input Voltage (Vpeak) | 20-7000 |
| Maximum Input Current (Apeak) | 0.5-500 |
| Attenuation Ratio | 10:1, 100:1, 500:1 |
| Input Impedance | 10MΩ, 100kΩ |
| Maximum Nondestructive Voltage | 10VDC, 42VDC |
| Total Length (m) | 0.3-3 |
| Noise | 75μArms or less |
| Power Supply | Probe power supply, Yokogawa probe I/F |
Applications
Key Features
Datasheet
Supplier Information
Related Products
-
