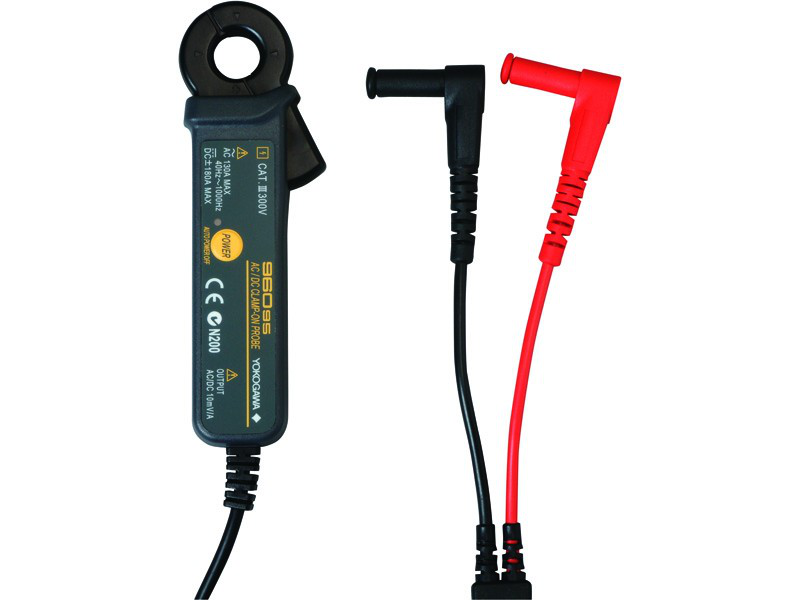

96095 AC/DC Clamp-on Probe
The 96095 AC/DC Clamp-on Probe is a high-precision current sensor designed for accurate measurement of AC and DC currents. It is compact, lightweight, and easy to use, making it ideal for various electrical testing applications.
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|
| Measurement Range | AC/DC 0-30A |
| Frequency Range | DC to 100kHz |
| Basic Accuracy | ±1% of reading |
| Output Voltage | 100mV/A |
| Power Supply Voltage | 1.5V (Alkaline dry cell) |
| Operating Temperature Range | 0°C to 50°C |
| Storage Temperature Range | -20°C to 60°C |
| Safety Category | CAT III 300V |
| Battery Type | Alkaline dry cell |
| Auto Power-Off Function | Enabled |
