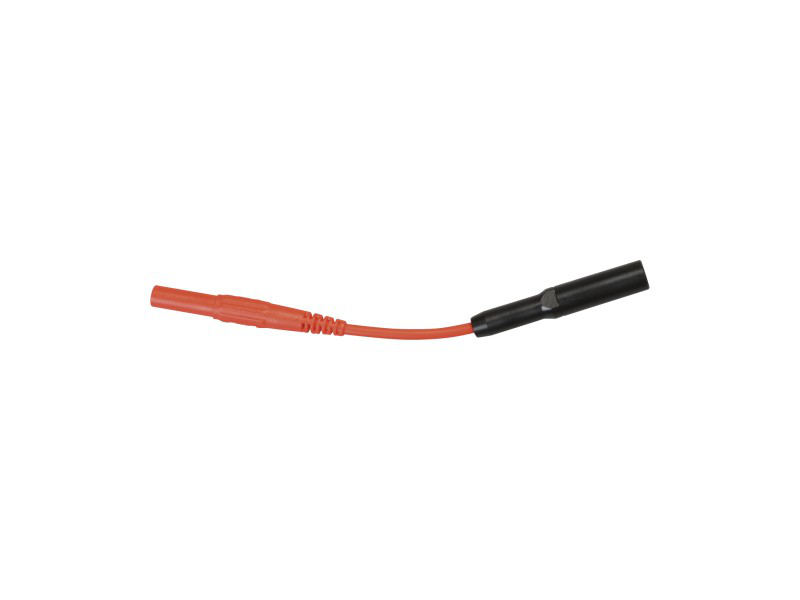

Precision Waveform Measurement Probes and Accessories
Yokogawa's precision waveform measurement probes and accessories are designed to ensure accurate and reliable measurements for oscilloscopes and ScopeCorders. These products include passive probes, differential probes, current probes, logic probes, and high-voltage measurement accessories.
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|
| Frequency Bandwidth | 10MHz-5GHz |
| Maximum Input Voltage | 20V-7000V |
| Maximum Input Current | 1mA-500A |
| Input Impedance | 10MΩ/approx. 22pF |
| Attenuation Ratio | 10:1, 100:1, 500:1 |
| Total Length | 1m-3m |
| Maximum Nondestructive Voltage | 4500V DC |
| Noise | 75μArms or less |
| Power Supply | Probe power supply |
| Power Supply | Yokogawa probe interface |
Applications
Key Features
Datasheet
