AQ2200 Series

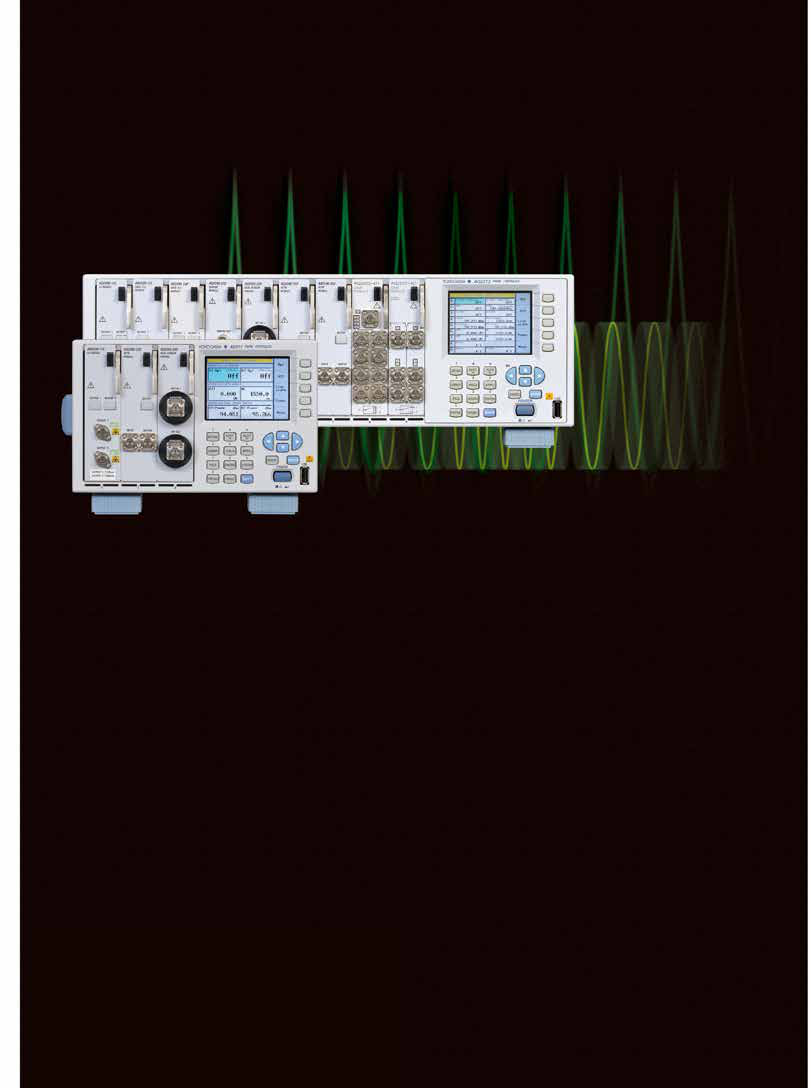

The AQ2200 Series is a versatile measurement system designed for evaluating optical components and optical transmission systems.
Save to Favorites
Overview
Specifications

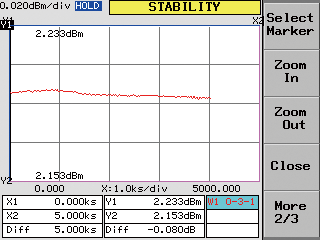

| Parameter | Value |
|---|---|
| Insertion Loss (dB) 1x2 | ≤4.0 |
| Insertion Loss (dB) 1x4 | ≤7.4 |
| Insertion Loss (dB) 1x8 | ≤11.4 |
| Insertion Loss (dB) 1x16 | ≤15.4 |
| Uniformity (dB) 1x2 | ≤0.6 |
| Uniformity (dB) 1x4 | ≤1.0 |
| Uniformity (dB) 1x8 | ≤1.5 |
| Uniformity (dB) 1x16 | ≤2.0 |
| Return Loss (dB) | ≥50 |
| Fiber Type | SMF/MMF |
| Switch Repeatability | ±0.01dB |
| Switch Insertion Loss | ≤1.0dB |
| Switch Return Loss | ≥50dB |
| Switch Fiber Type | SMF/MMF |
| Source Wavelength Range | 1310nm/1550nm/1625nm/1650nm |
| Source Power Stability | ±0.005dB |
| Power Meter Wavelength Range | 800-1700nm |
| Power Meter Power Range | -90 to +15dBm |
| Probe Wavelength Range | 400-1100nm |
| Probe Power Range | -90 to +10dBm |
| Attenuator Wavelength Range | 1200-1700nm |
| Attenuator Insertion Loss | ≤0.1dB |
| Attenuator Return Loss | ≥45dB |
| Attenuation Range | 0-60dB |
| Attenuator Power Range | ≤23dBm |
| Receiver Wavelength Range | 850nm/1310nm/1550nm |
| Receiver Power Range | -30 to +10dBm |
| Receiver Power Voltage Range | -7.5V to +5.25V |
| Receiver Current Range | 0 to 3A |
Applications
Key Features
Datasheet
Supplier Information
Related Products
-
AQ2200 Series
Fiber Optic Switches
Yokogawa
Insertion Loss (dB) AQ2200-421 1x2: ≤1.4 Insertion Loss (dB) AQ2200-421 2x2: ≤1.8 Insertion Loss (dB) AQ2200-411 1x4: ≤1.8
The AQ2200 Series is a versatile measurement system designed for evaluating optical components and optical transmission systems. It offers various measurement modules, including light sources, optical power meters, optical attenuators, and optical switches.
-
